ADAYO lighting ceiling spotlights for living room are avaliable in front waterproof IP65, home spot light comply with CE, EMC and new ERP

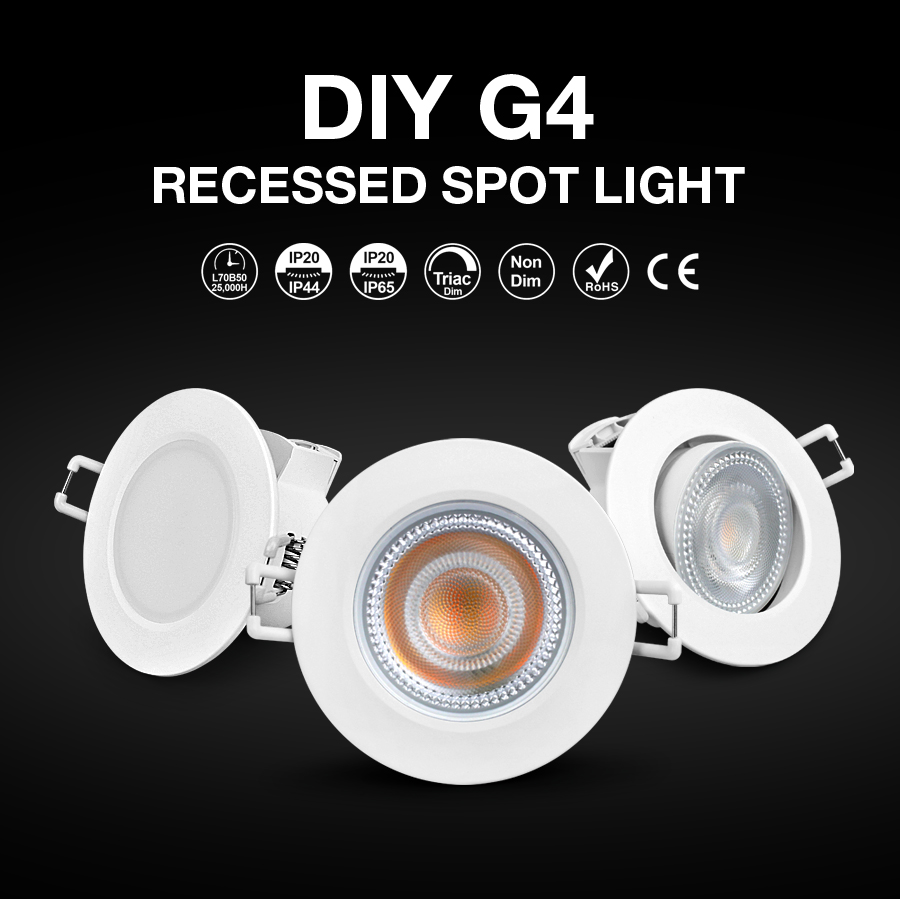

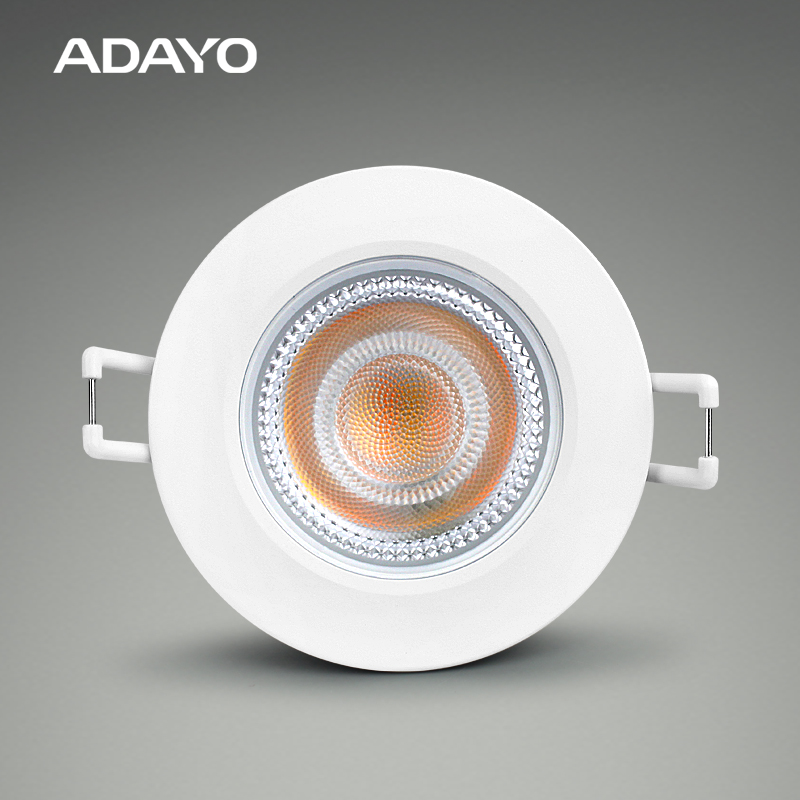

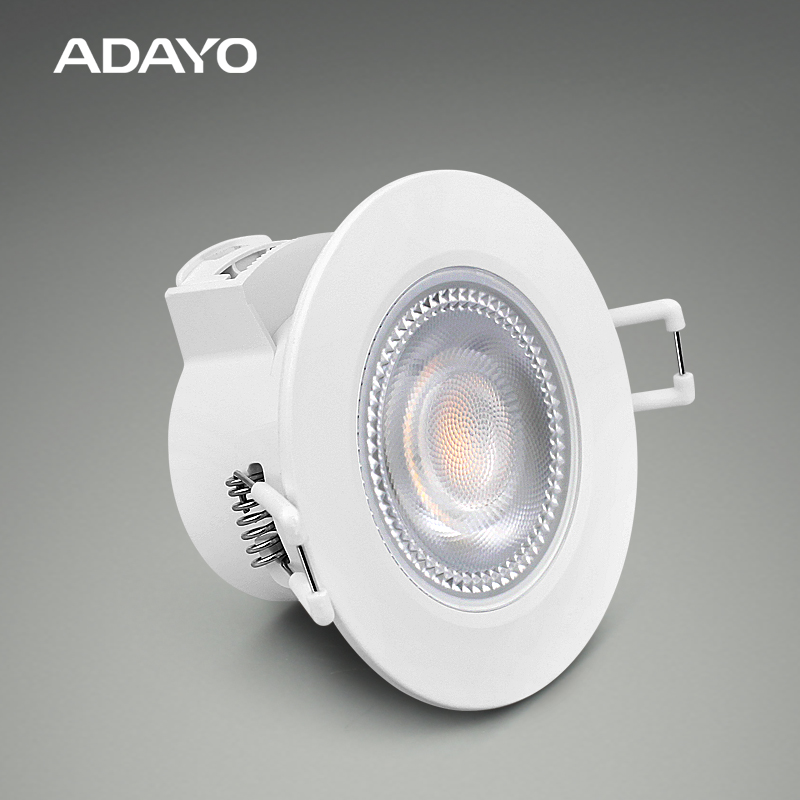

AVALOR E03 home spot light 5.5W 550lm waterproof IP65 dimmable

ADAYO lighting ceiling spotlights for living room with CCT3, the changeable switch is on back and this home spot light with screw free design can save the installation cost

Product Specification:
  • Code : 926602006727
  • Rated Wattage : 5.5W
  • Luminous : 550lm

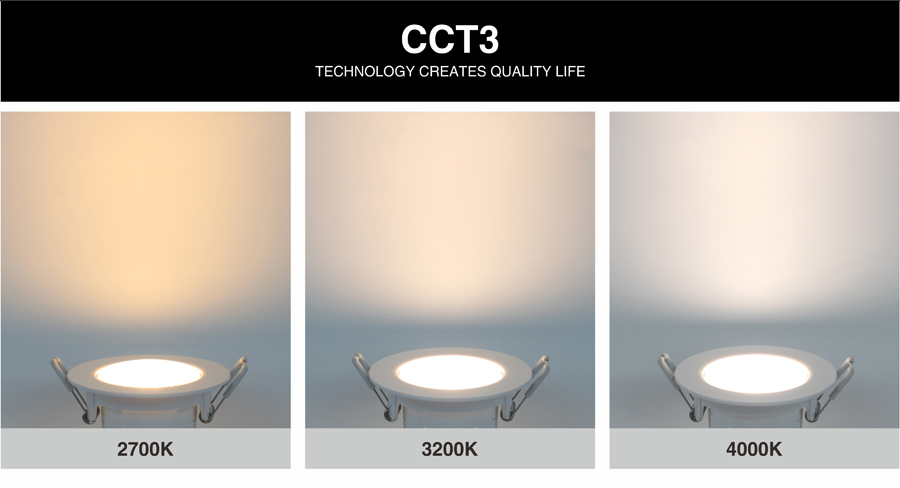

  • Colour Temperature : CCT3 2700K-3000K-4000K
  • Colour Rendering : 80
  • Size : Φ87*45mm cutΦ68mm
  • PF : 0.6
  • Dimmable : Yes
INQUIRY NOW
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs

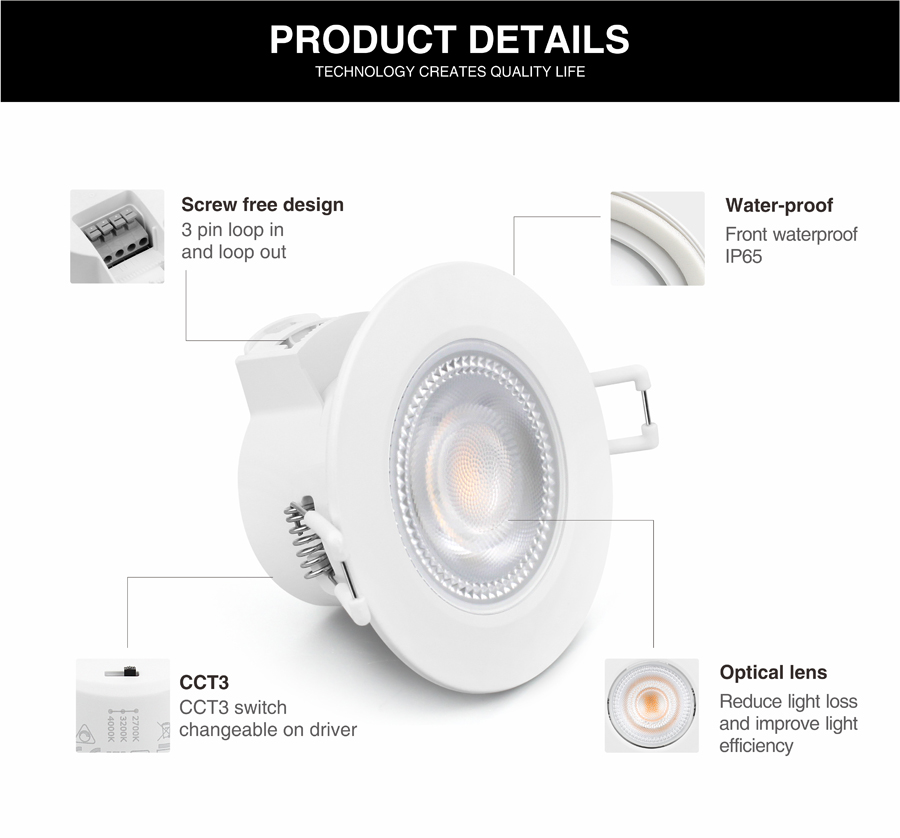

Product Details
Documents download

ADAYO ceiling spotlights for living room



●  Product  Description

AVALOR E03 ceiling spotlights for living room are dimmable spotlights with excellent dimming performance and supports dimmers of common brands on the market. This home spot light has a classic minimalist desing, tool-free installation, CCT3, bezel changeable, which is economical and really idea for DIY lighting market.



ADAYO ceiling spotlights for living room



●  Features

ADAYO lighting CCT3 ceiling spotlights for living room 5.5W dimmable home spot light features are as below:

  • Aluminum heat sink
  • Tooling free installation design
  • Dimmable and Non dimmable optional
  • CE, NEW ERP, EMC, ROHS approved
  • Three designs: IP65 fix with PC diffuser, IP44 adjustable with lens , IP65 fix with lens
  • Heat protection system, with excellent internal driver
  • Four colors bezel changable, brush nickle, silver, chrome and black
  • Smooth triac dimming

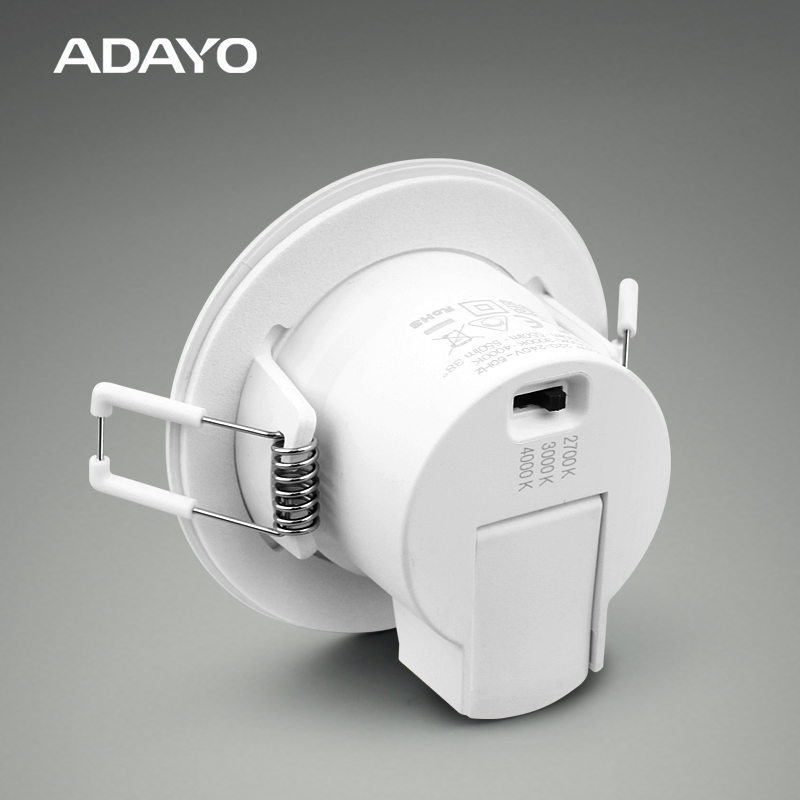

  • CCT3 switch changeable on back
  • Can be installed directly into the insulation with the extra frame
  • Life span 25000hours



ADAYO ceiling spotlights for living room

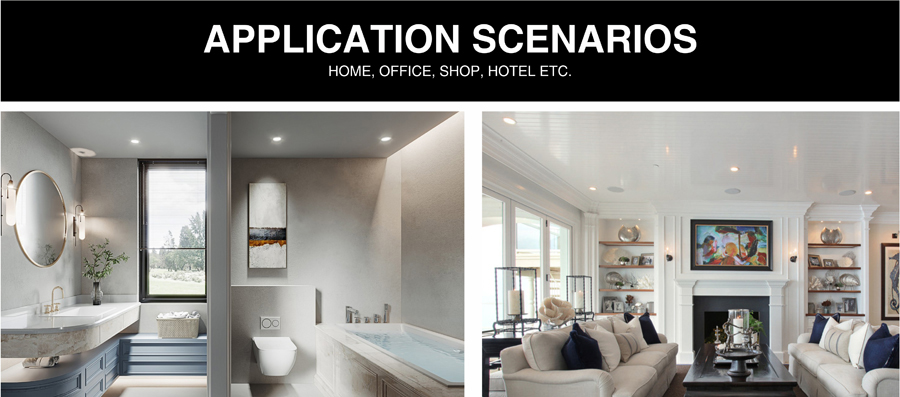

●  Applications

AVALOR E03 G4 DIY ceiling spotlights for living room is front waterproof IP65, with 38 degree angle widely bright feeling, as a bathroom rated downlights with four colors bezel changeable meet your different ceiling styles.

  • Living room. bedroom. bathroom. kitchen.
  • Office. meeting room.
  • Shop. supermarket.
  • Hotel



ADAYO ceiling spotlights for living room



●  Specification



SPECIFICATION
Item NO. SKU Lumen(lm) CRI CCT Watt (W) PF Beam angle (°) Size
(Dia * H mm)
Cut size (mm)
926602006734 SL05-C25-005WA-27  500 80 F2700 5.7 0.6 38 ø87 45 ø68
926602006735  SL05-C25-005WA-30 510 80 F3000 5.7 0.6 38 ø87 45 ø68
926602006736  SL05-C25-005WA-40 550 80 F4000 5.7 0.6 38 ø87 45 ø68
926602006727

SL05-C25-007WA-C1

500
550
550
80 F2700
P3000
F4000
5.7 0.6 38 ø87 45 ø58



ADAYO ceiling spotlights for living room



●  Options

  • Dimmable and no-dimmable
  • Signle Colour temperature, CCT3
  • Decorate bezel shape: round and square.
  • Decorate bezel color: bruch nickel, chrome, silver, black, white(square)
  • Covering brackets suppot insulation



ADAYO ceiling spotlights for living room

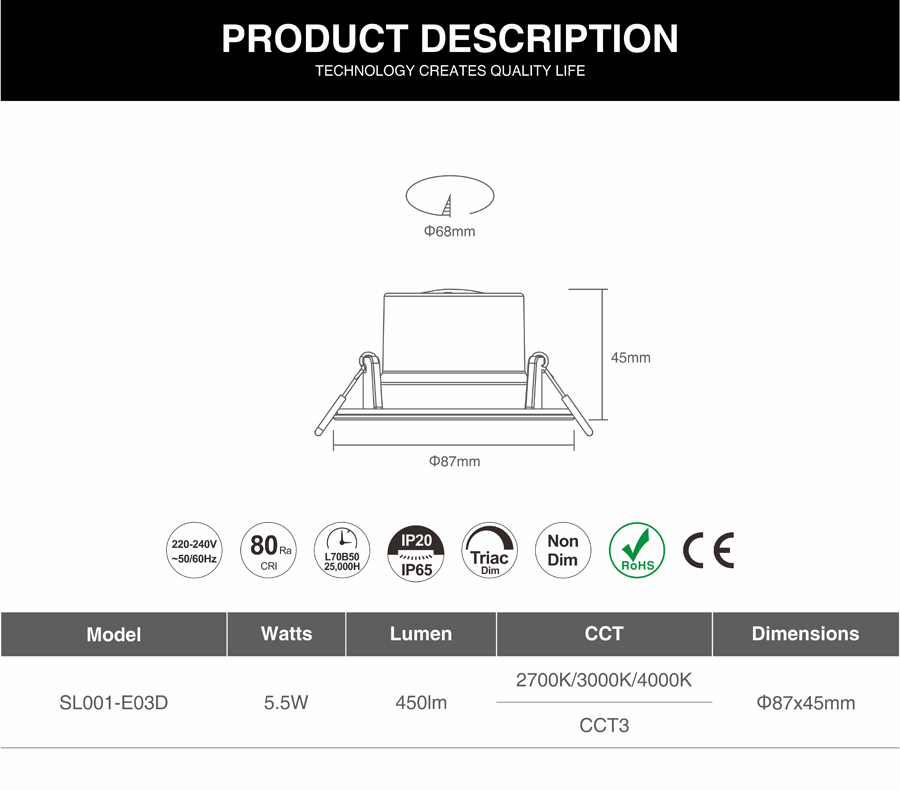

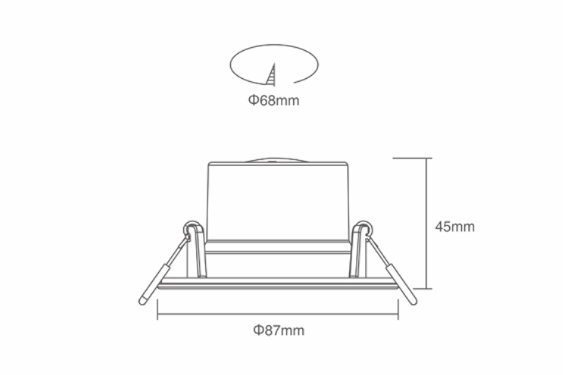

●  Product Line Drawing (Size:mm)



ADAYO ceiling spotlights for living room

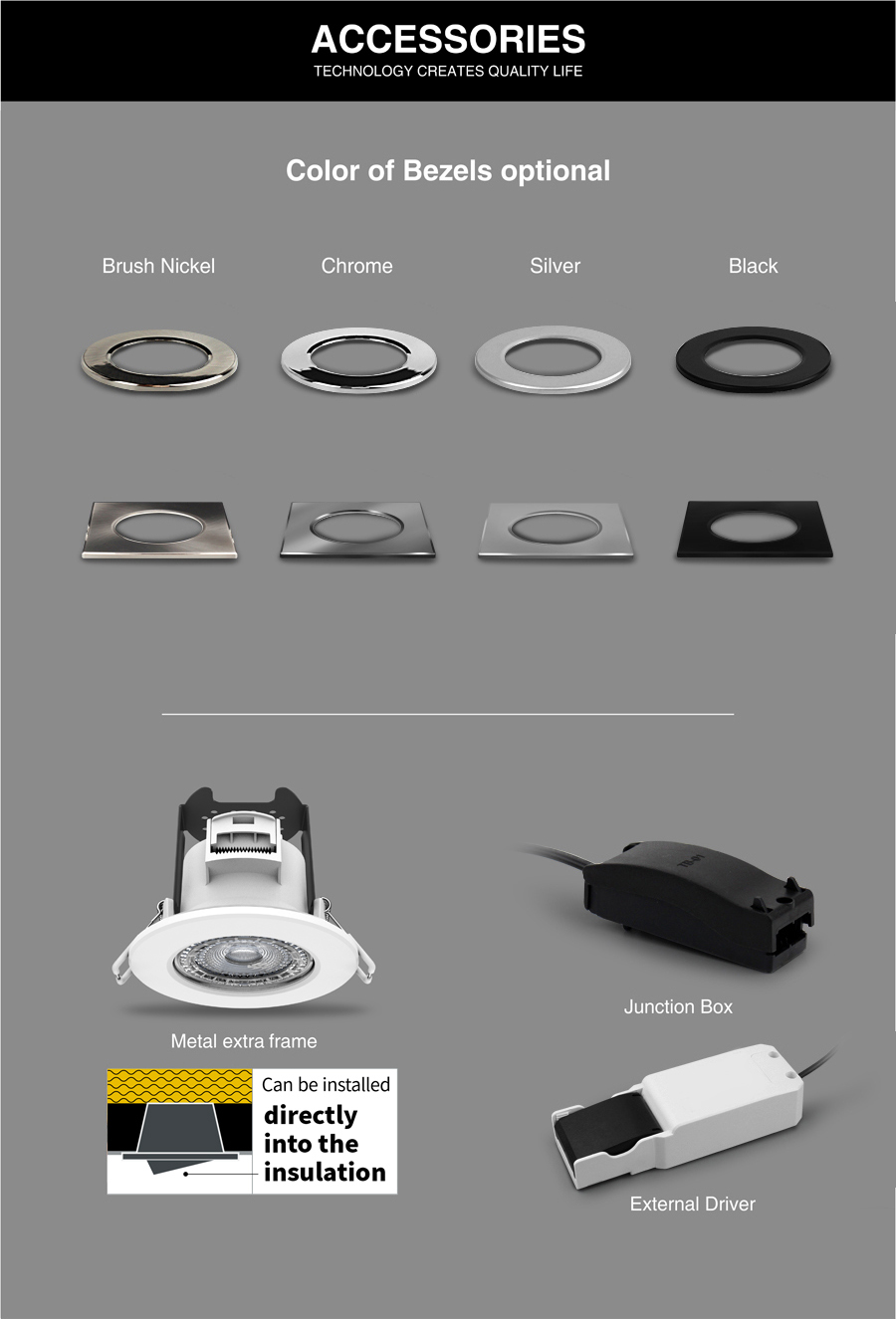

● Accessories Optional

  • Bezel shape: round. square.
  • Bezel colors: brush nickel, chrome, silver, black
  • Juction box
  • External driver
  • Metal extra frame



ADAYO ceiling spotlights for living room



●  Installation

  • Make sure power is off before installation.
  • Cut a suitable hole in the ceiling , the hole size will show on the specification form.

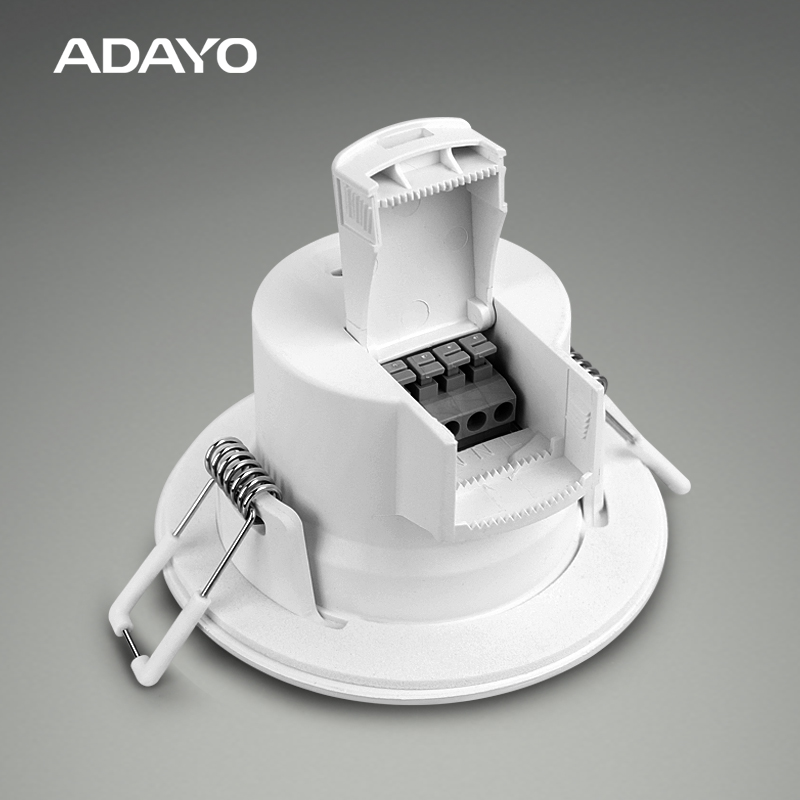

  • Connect wires to the wire box .
  • Press the side spring and push the fixture fitting into the ceiling hole, and make sure the fitting is stable and firmly.(Need to be adjusted well to illuminate angle). After proper installation is confirmed, switch on the main power.





●  Brief introduction of ADAYO Lighting

  • A wholly owned subsidiary of Foryou corporation (ADAYO, Since 1993, listed in 2017)
  • Industrial park: 56000sqm
  • Business line: LED package, LED high power driver, LED Lighting
  • R&D laboratory: 1200sqm with international standard
  • R&D team: more than 60 people, one third of them with more than 20 years of experience in the lighting industry
  • Work shop: 5000 SQM  with more than 300 works and 50 production lines
  • Monthly Capacity(Pieces) :  package 1000KK , Driver: Big Watt: 300K, Low Watt: 1000K,  LED light: 5000K
  • New product lunch time: 6-10 weeks.
  • Payment: L/C, T/T, O/A
