ADAYO lighting adjustable ceiling spotlights areseparate isolated power supply, recessed ceiling light fixture meets the international certification

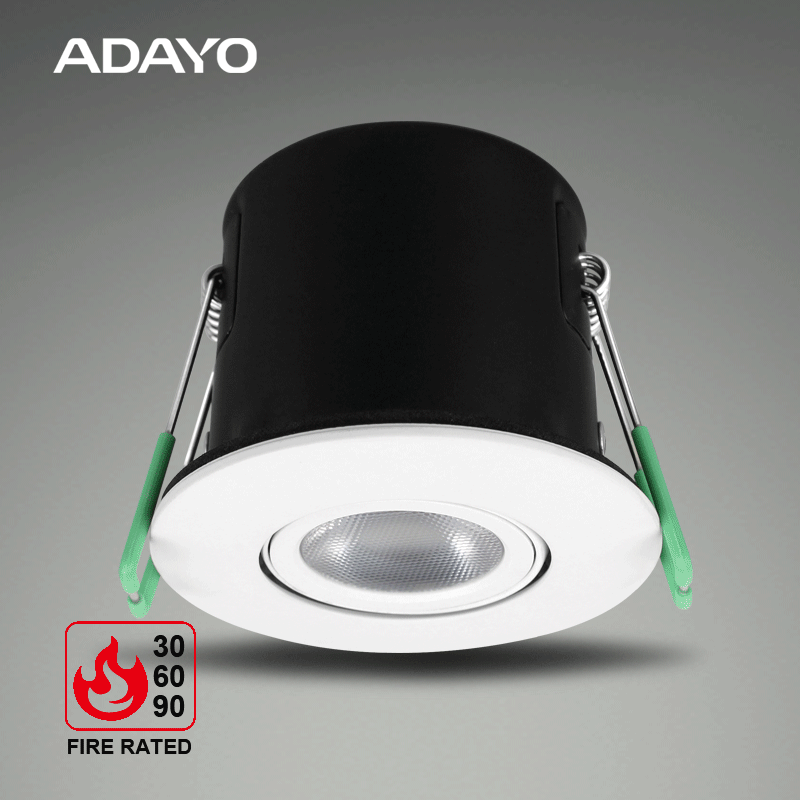

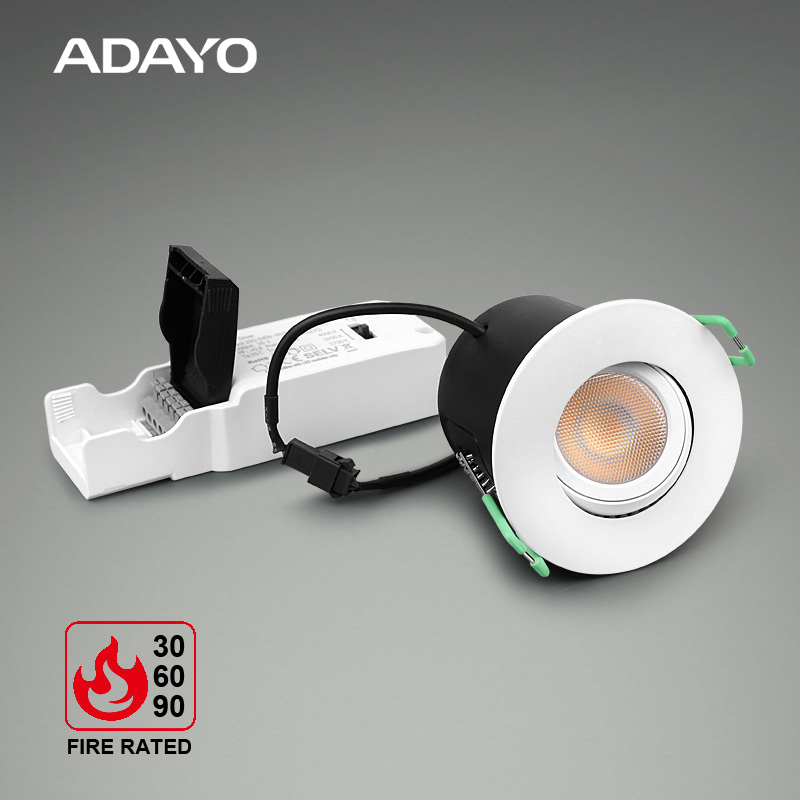

ROLAND Ⅲ fire rated adjustable ceiling spotlights 6W CCT3

ADAYO lighting 6W adjustable ceiling spotlights with 360° horizontal, 30° tilt adjustment, the recessed ceiling light fixture can be used as fire rated down light with a iron can cover

Product Specification:
  • Code : 926602006259
  • Rated Wattage : 6W
  • Luminous : 570lm
  • Colour Temperature : CCT3 2700K-3200K-4000K
  • Dimming or not : Dimming
  • beam angle : 38°
  • Lifespan : 50000hrs
  • Size : Φ81*63mm cut Φ68mm
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs
Product Details
Documents download


●  Product  Description

ROLAND Ⅲ 6W recessed spotlights CCT3 adjustable ceiling spotlights can be adjusted angle from all directions with x30'/60'/90' flame retardant test adopt flame retardant material, safe and secure. This recessed ceiling light fixture is separate isolated power supply connect lamp with connect terminal and classic minimalist design suitable for different application.


ADAYO adjustable ceiling spotlights


●  Features

ADAYO lighting CCT3 recessed ceiling light fixture 6W IP65 with 360° rotation features as below:

  • Aluminum heat sink, smooth triac dimming
  • Tooling free installation design with 3 pin loop in and loop out
  • CE, NEW ERP, EMC, ROHS approved
  • Can be used as fire rated down light with a iron can cover and can be covered by insulation directly
  • Iron housing melting point is 1538℃
  • 360° horizontal adjustment, 30° tilt adjustment
  • Three finish colors optional, white, silver and black

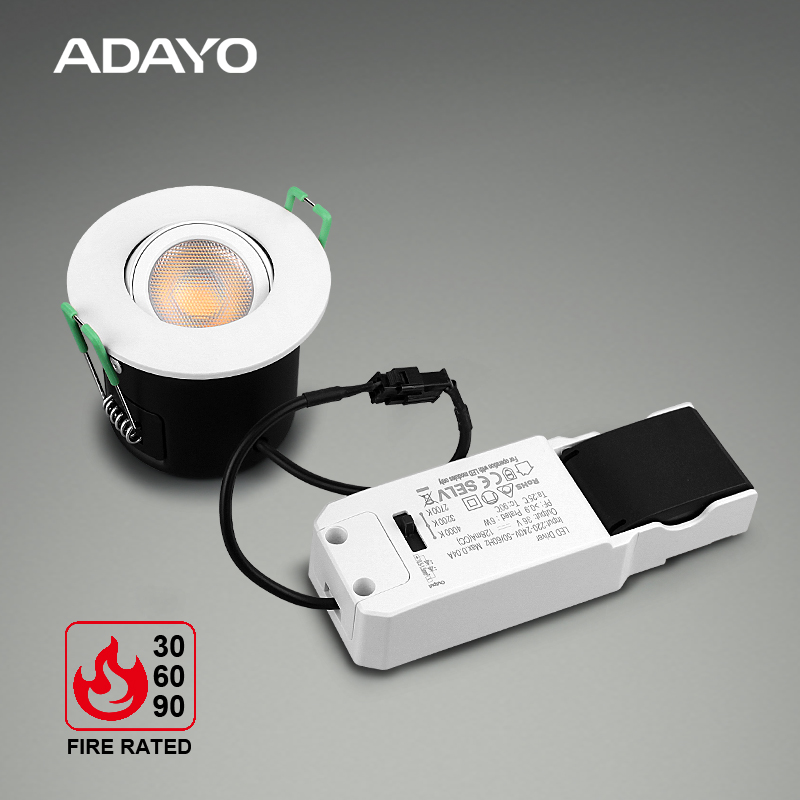

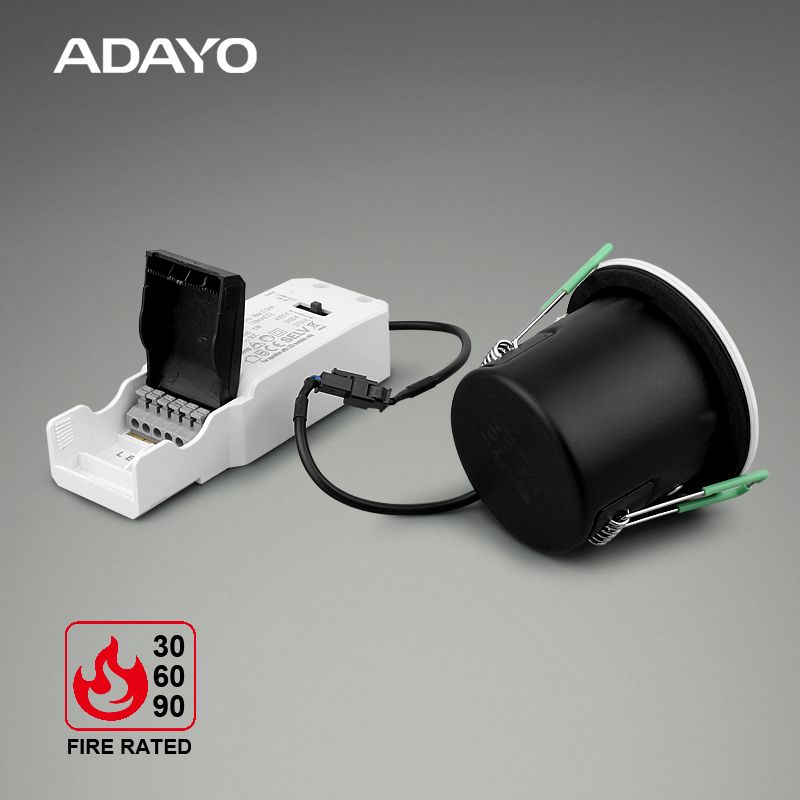

  • Separate isolated power supply connect lamp with connect terminal
  • CCT3 switch changeable on driver
  • Life span 50000hours, waterproof IP65


ADAYO adjustable ceiling spotlights

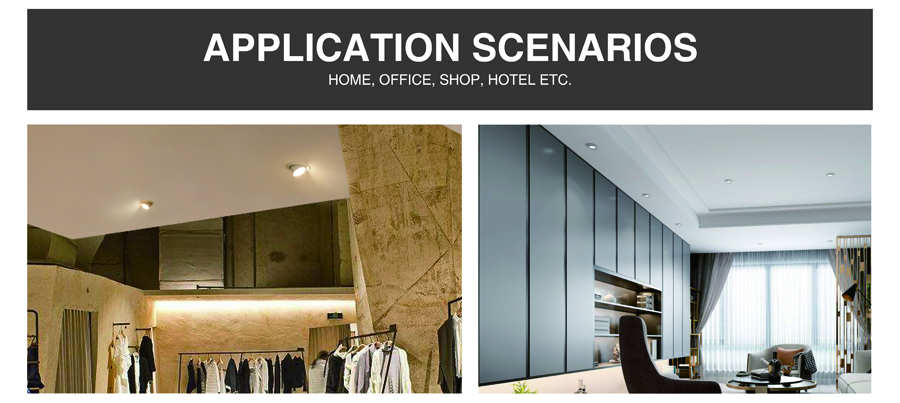

●  Applications

ROLAND Ⅲ 6W adjustable ceiling spotlights are the dimmable spotlight IP65, with 38 degree angle widely bright feeling, with three colors optional meet your different ceiling styles.

  • Living room, bedroom, bathroom, kitchen.
  • Office, meeting room.
  • Shop, supermarket.
  • Hotel.


ADAYO adjustable ceiling spotlights


●  Specification


Item NO. SKU Lumen(lm) CIR CCT Watt (W) PF Beam angle (°) Size
(Dia * H mm)
Cut size (mm)



YF25K-AW006-C130W 500
80 F2700
8.5 0.9 38 ø81 63 ø68



YF25K-AW006-C130B 480
80 F2700
8.5 0.9 38 ø81 63 ø68



YF25K-AW006-C130S 480
80 F2700
8.5 0.9 38 ø81 63 ø68

ADAYO adjustable ceiling spotlights


●  Options

  • Signle Colour temperature, CCT3
  • Lens and reflector optional
  • Three finish colors optional, white, silver and black


ADAYO adjustable ceiling spotlights


●  Product Line Drawing (Size:mm)

ADAYO adjustable ceiling spotlights

●  Installation

  • Make sure power is off before installation.
  • Cut a suitable hole in the ceiling , the hole size will show on the specification form.
  • Press the side spring and push the fixture fitting into the ceiling hole, And make sure the fitting is stable and firmly. After proper installation is confirmed, switch on the main power.


ADAYO adjustable ceiling spotlights


●  Brief introduction of ADAYO Lighting

  • A wholly owned subsidiary of Foryou corporation (ADAYO, Since 1993, listed in 2017)
  • Industrial park: 56000sqm
  • Business line: LED package, LED high power driver, LED Lighting
  • R&D laboratory: 1200sqm with international standard
  • R&D team: more than 60 people, one third of them with more than 20 years of experience in the lighting industry
  • Work shop: 5000 SQM  with more than 300 works and 50 production lines
  • Monthly Capacity(Pieces) :  package 1000KK , Driver: Big Watt: 300K, Low Watt: 1000K,  LED light: 5000K
  • New product lunch time: 6-10 weeks.
  • Payment: L/C, T/T, O/A
