ADAYO lighting fire rated down light pass 30'/60'/90' flame retardant test and this recessed downlight fixture is IP65 and with BS476-20/21

Fire rated down light CLOVER Ⅰ 7.5W dimming CCT3 and IP65

ADAYO lighting fire rated down light is made of flame retardant material iron, recessed downlight fixture front switch to change the CCT can be covered by insulation directly

Product Specification:
  • Code : 926602006019
  • Rated Wattage : 7.5W
  • Luminous : 570lm
  • Colour Temperature : CCT3 2700K-3200K-4000K
  • Dimming or not : Dimming
  • beam angle : 60°
  • Lifespan : 25000hrs
  • Size : Φ88*73mm cut Φ70mm
INQUIRY NOW
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs
Product Details
Documents download



●  Product  Description

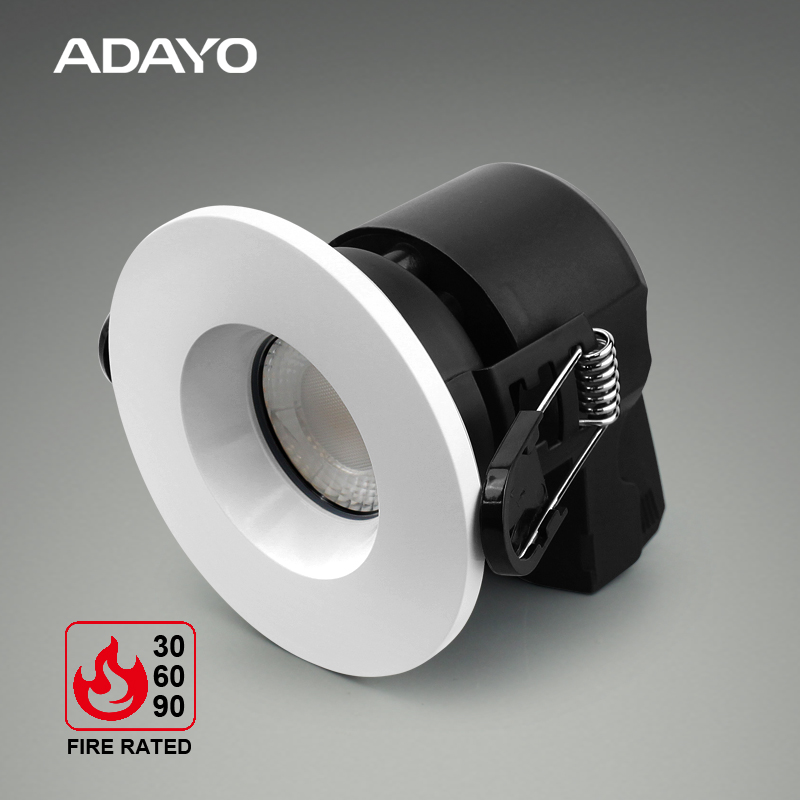

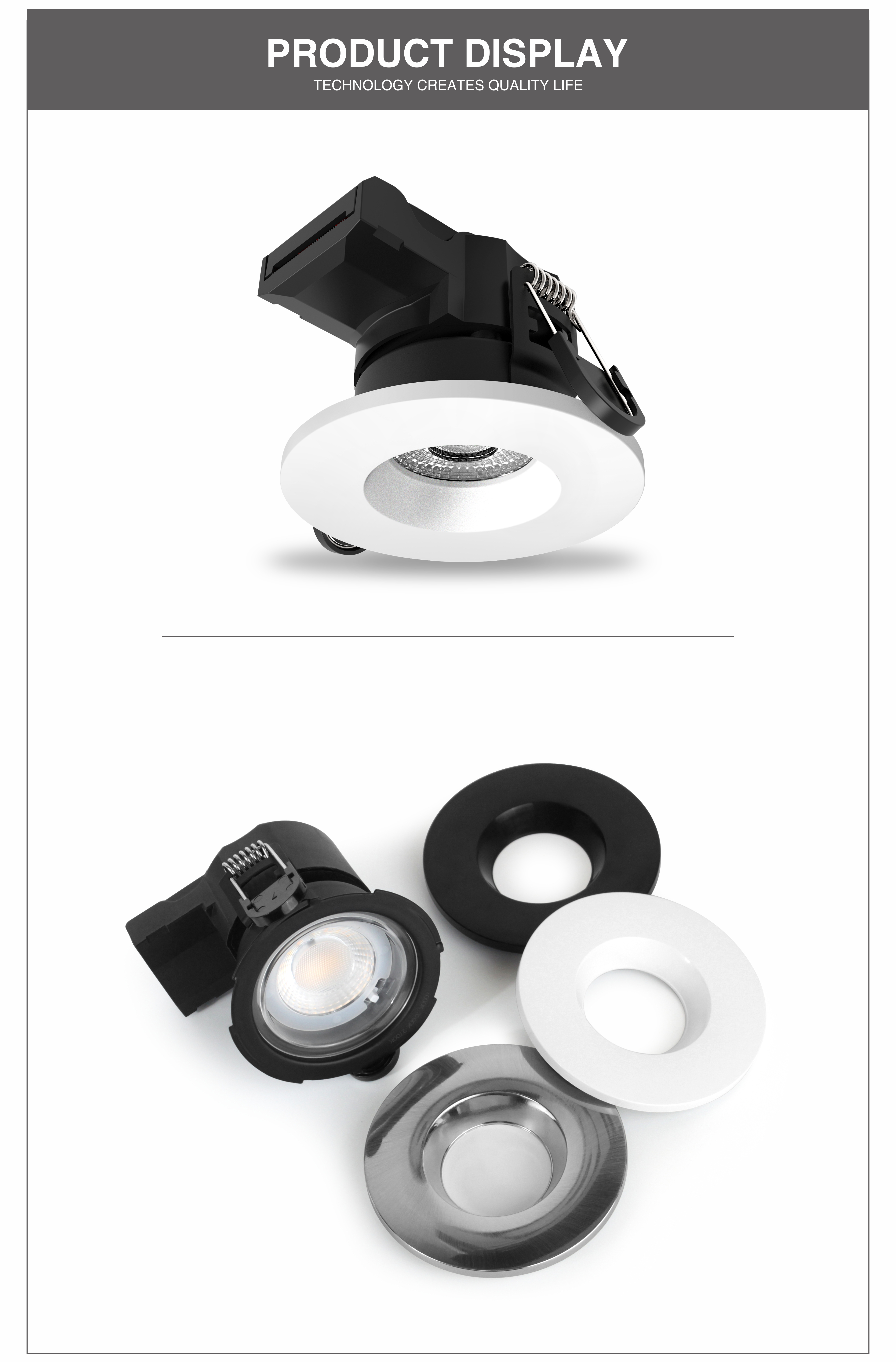

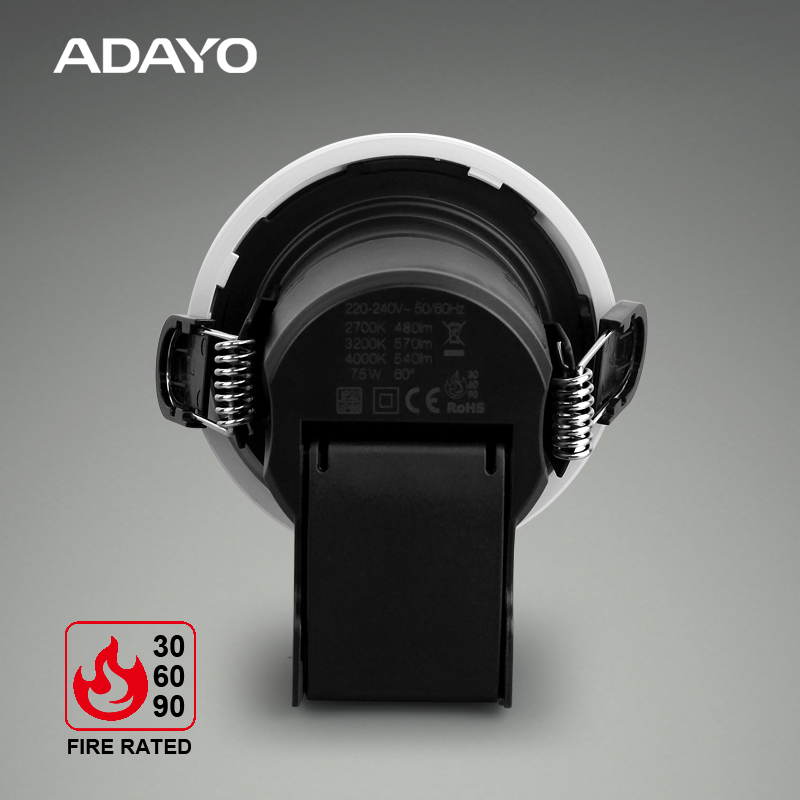

CLOVER Ⅰ downlight 7.5W CCT3 fire rated down light is a dimmable downlight with BS476-20/21 and 30'/60'/90' flame retardant test adopt flame retardant material, safe and secure. With classic minimalist design suitable for different application.



ADAYO fire rated down light



●  Features

ADAYO lighting CCT3 recessed downlight fixture 7.5W dimmable fire rated down light features as below:

  • Aluminum heat sink

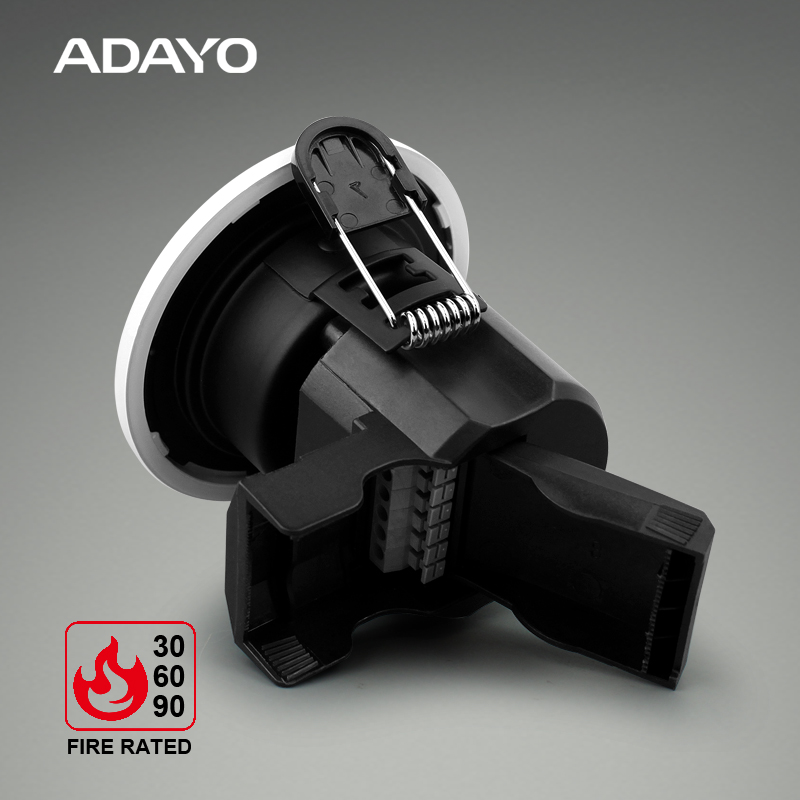

  • Tooling free installation design with 3 pin loop in and loop out
  • Dimmable and Non dimmable optional
  • CE, NEW ERP, EMC, ROHS approved
  • Iron housing melting point is 1538℃
  • Covered by insulation directly

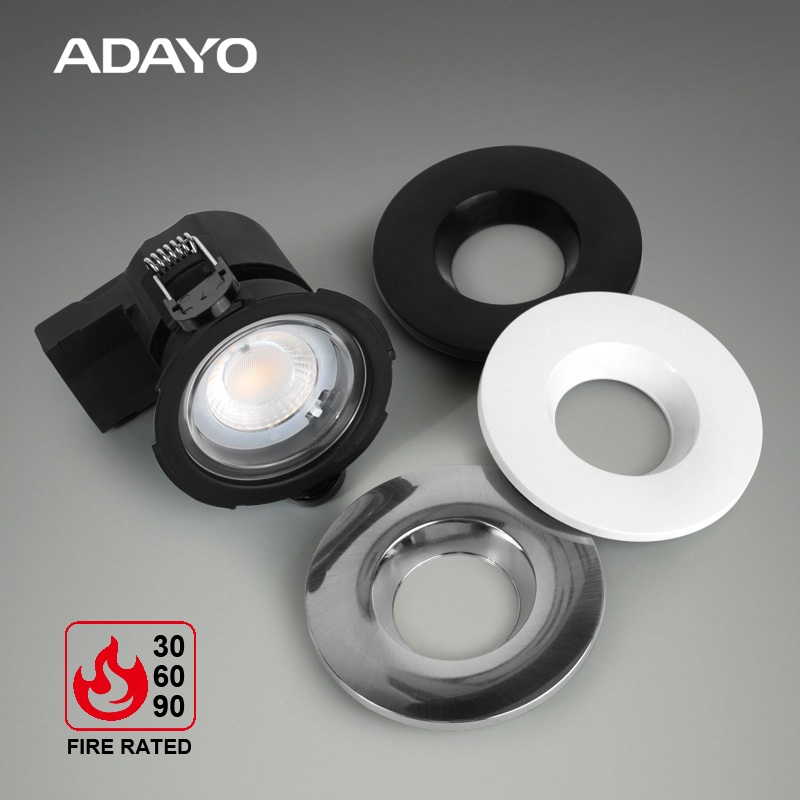

  • Four colors bezel changable, brush nickle, silver, chrome and black
  • Smooth triac dimming
  • Life span 25000hours



ADAYO fire rated down light



●  Applications

CLOVER Ⅰ fire rated down light is a dimmable recessed downlight fixture IP65, with 60 degree angle widely bright feeling, with four colors bezel changeable meet your different ceiling styles

  • Living room. bedroom. bathroom. kitchen.
  • Office. meeting room.
  • Shop. supermarket.
  • Hotel



ADAYO fire rated down light



●  Specification



SPECIFICATION
Item NO. SKU Lumen(lm) CIR CCT Watt (W) PF Beam angle (°) Size
(Dia * H mm)
Cut size (mm)
926602005736  CYE25A-0050B630 500 80 F3000 6.5 0.8 60 ø88 73 ø70
926602005737  CYE25A-0050B640 540 80 F4000 6.5 0.8 60 ø88 73 ø70
926602005738  CYE25A-0050B665 540 80 F6500 6.5 0.8 60 ø88 73 ø70
926602006019

CYE25A-0050B6C1

480
570
540
80 F2700
(3200)
F4000
7.5 0.8 60 ø88 73 ø70


ADAYO fire rated down light



●  Options

  • Dimmable and no-dimmable
  • Signle Colour temperature, CCT3
  • Separat isolated driver, integreret
  • Decorate bezel: bruch nickel, chrome, silver, black
  • Bezel materials: ABS, ADC12

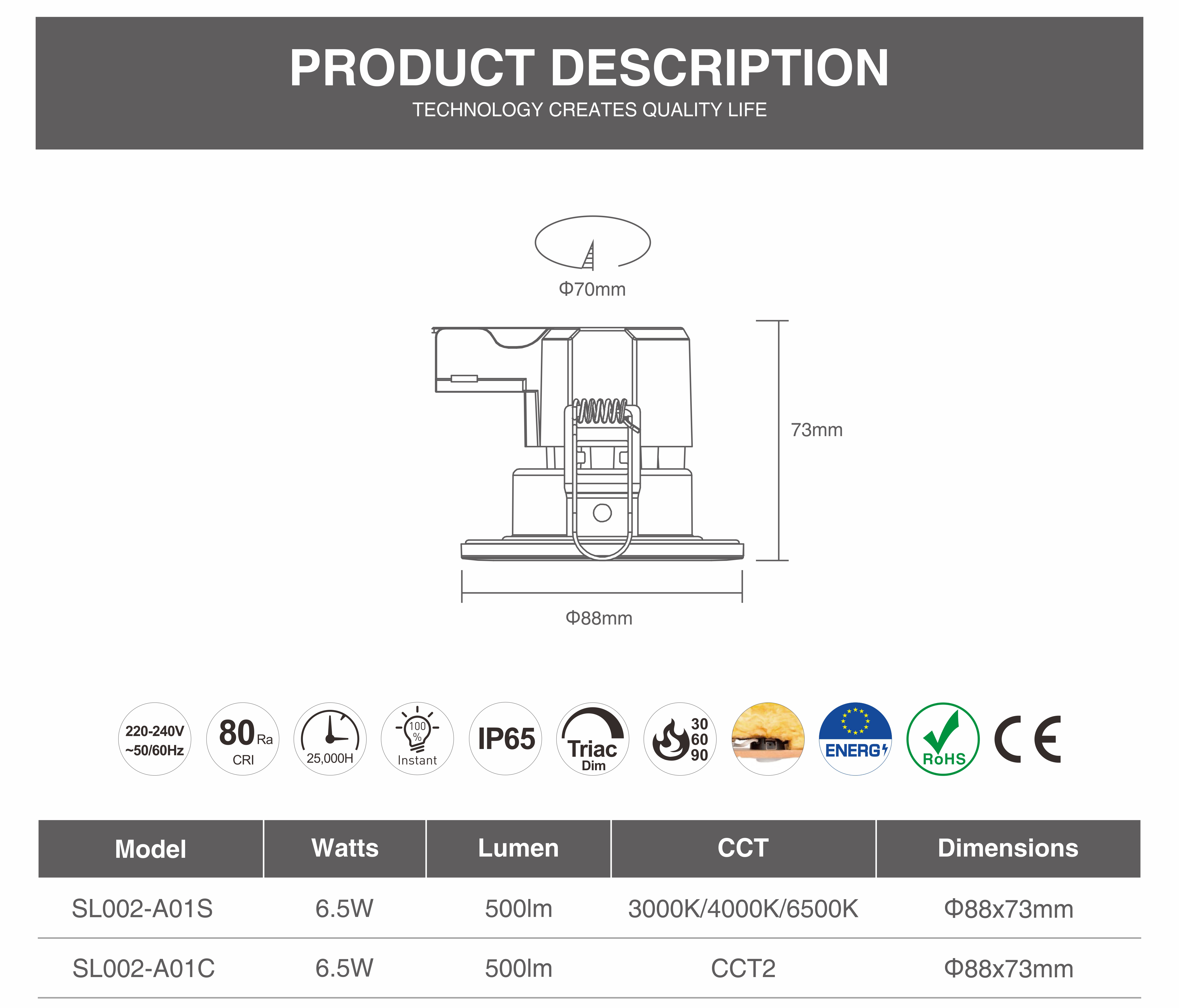

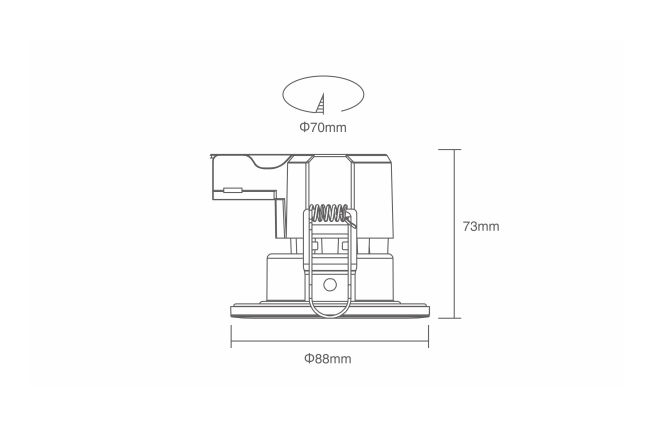

●  Product Line Drawing (Size:mm)

ADAYO fire rated down light

● Accessories Optional

  • Bezel shape: round
  • Bezel colors: brush nickel, chrome, silver, black
  • Bezel materials: ABS, ADC12



●  Installation

  • Make sure power is off before installation.
  • Cut a suitable hole in the ceiling , the hole size will show on the specification form.
  • Press the side spring and push the fixture fitting into the ceiling hole, And make sure the fitting is stable and firmly. (Need to be adjusted well to illuminate angle). After proper installation is confirmed, switch on the main power.



ADAYO fire rated down light



●  Brief introduction of ADAYO Lighting

  • A wholly owned subsidiary of Foryou corporation (ADAYO, Since 1993, listed in 2017)
  • Industrial park: 56000sqm
  • Business line: LED package, LED high power driver, LED Lighting
  • R&D laboratory: 1200sqm with international standard
  • R&D team: more than 60 people, one third of them with more than 20 years of experience in the lighting industry
  • Work shop: 5000 SQM  with more than 300 works and 50 production lines
  • Monthly Capacity(Pieces) :  package 1000KK , Driver: Big Watt: 300K, Low Watt: 1000K,  LED light: 5000K
  • New product lunch time: 6-10 weeks.
  • Payment: L/C, T/T, O/A
