ADAYO lighting round recessed downlight has full family design with four module options, 6W led downlight is also available in other wattages

Round recessed downlight ELFFEL 6W 3000K dimmable with cut90mm

This 6W LED downlight can choose Dali or emergency power supply and 4 types option, this round recessed downlight lifespan is 50,000 hours and the warranty period is 5 years

Product Specification:
  • Code : DL10-A30
  • Rated Wattage : 6W
  • Luminous : 600lm
  • Colour Temperature : 3000K
  • Dimmable : Yes
  • beam angle : 100°
  • Lifespan : 50000hrs
  • Size : Φ110*37mm cutΦ90mm
INQUIRY NOW
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs
Product Details
Documents download





●  Over view

ADAYO Lighting is a LED downlight manufacturer that supports customizing all kinds of downlights and other home lighting.

This 6W LED downlight is designed to high quality standards, this ceiling light has a high color rendering index (CRI>80) to retain true colors and it's designed with modules, and there are four combinations in total.



ADAYO round recessed downlight



●  Product  Description

ADAYO's round recessed downlights in this module are suitable for use in commercial, retail, hospitality and residential applications. Our LED downlights offer high lumen output, smooth illumination and high energy efficiency. And this module downlight specifications are as follow:



 Item Name:  Round recessed downlight                   Code:     DL10-A30
 Watt (W):  6  Lumen(lm):             600
 Input Voltage(V):       220-240v ~50/60Hz  CRI (Ra>):  80
 Lifespan:  50000hrs  IP Rating:  IP44
 Warranty:  5 years  Beam angle:   100°
 Installation:  Recessed  CCT:  3000K
 Lamp Body Materia:         AL+PA  Light source:                SMD2835



ADAYO round recessed downlight



●  Features

PC housing with PC or Alu reflector

Easy Installation, 3 pins loop in and loop out

No Flicking, no black spots, soft edges

High luminous efficiency up to 100lm/w

50000hrs lifespan, 5 years warranty



ADAYO round recessed downlight

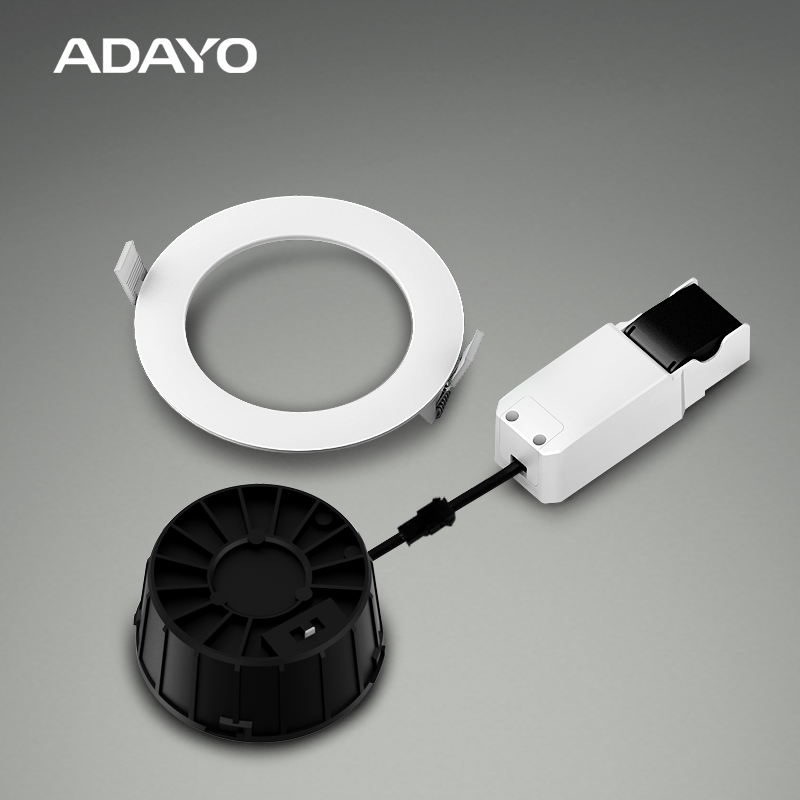

●  Options

1. Wattage: 6W, cutΦ90mm/ 9W, cutΦ120mm/ 15W, cutΦ150mm/ 24W, cutΦ200mm.

2. Dimmable: DALI or Traic dimmable.

3. CCT selectable: 3000K/4000K/6500K.

4. Frame: Flat recessed frame, Slight recessed frame, Deep recessed frame, Surface-mount frame.



ADAYO round recessed downlight



ADAYO round recessed downlight

ADAYO round recessed downlight

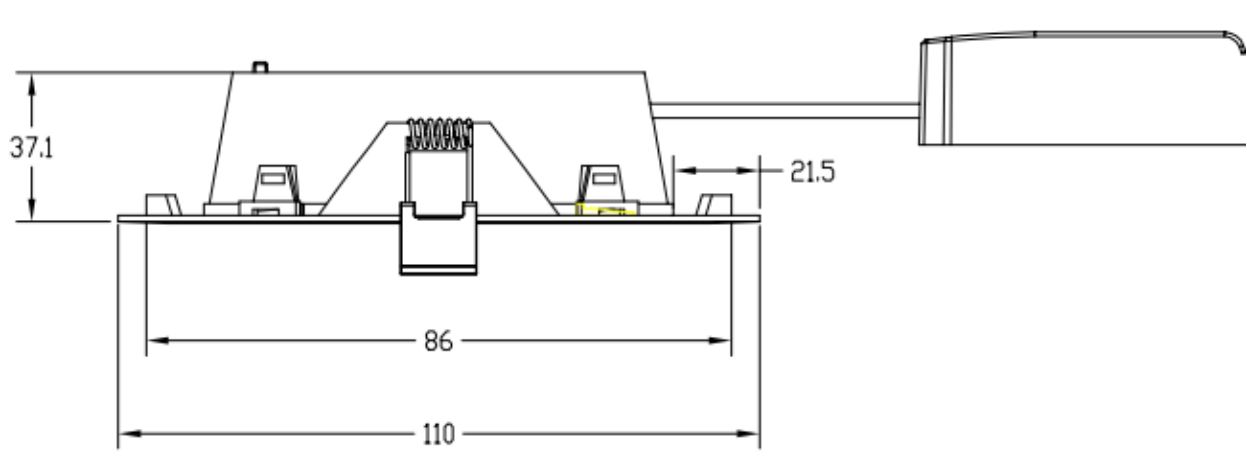

●  Product Line Drawing (Size:mm)



ADAYO round recessed downlight

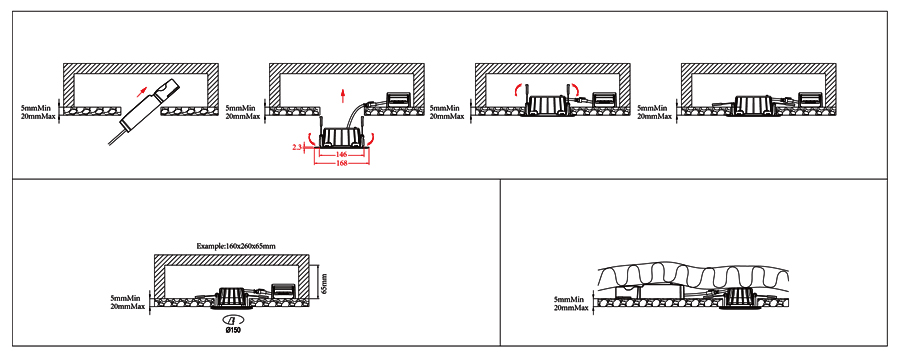

● Installation

To avoid electric shock, maintenance and installation are recommended to be performed by a professional electrician.
Please use within the correct input power range.
Please turn off the power before installation to ensure safety.



ADAYO round recessed downlight



● Application Scenarios

ADAYO lighting round recessed downlight delivery fast with CE and BS476-21/22 application as below:

This module downlight with high luminous efficiency can save more than 90% of power consumption without losing any brightness.

Perfect for home, hall, office, store, hotel, restaurant, etc.



ADAYO round recessed downlight



● Brief introduction of ADAYO Lighting:

ADAYO was founded in 1993, listed in 2017, the main modes of cooperation are OEM, ODM and SKD. Industrial park area: 560000sqm.

There are three main business line of ADAYO lighting: LED lighting, LED package and LED big power supply;

With R&D laboratory covered 1200m² with international standard;

R&D team more than 60 people, one third of them with more than 20 years of experience in the lighting industry;

Work Shop 5000 SQM with more than 300 works and 50 production lines;
