ADAYO lighting deep recessed ceiling downlight is available in different size and this led down lights for ceiling is easy for installation

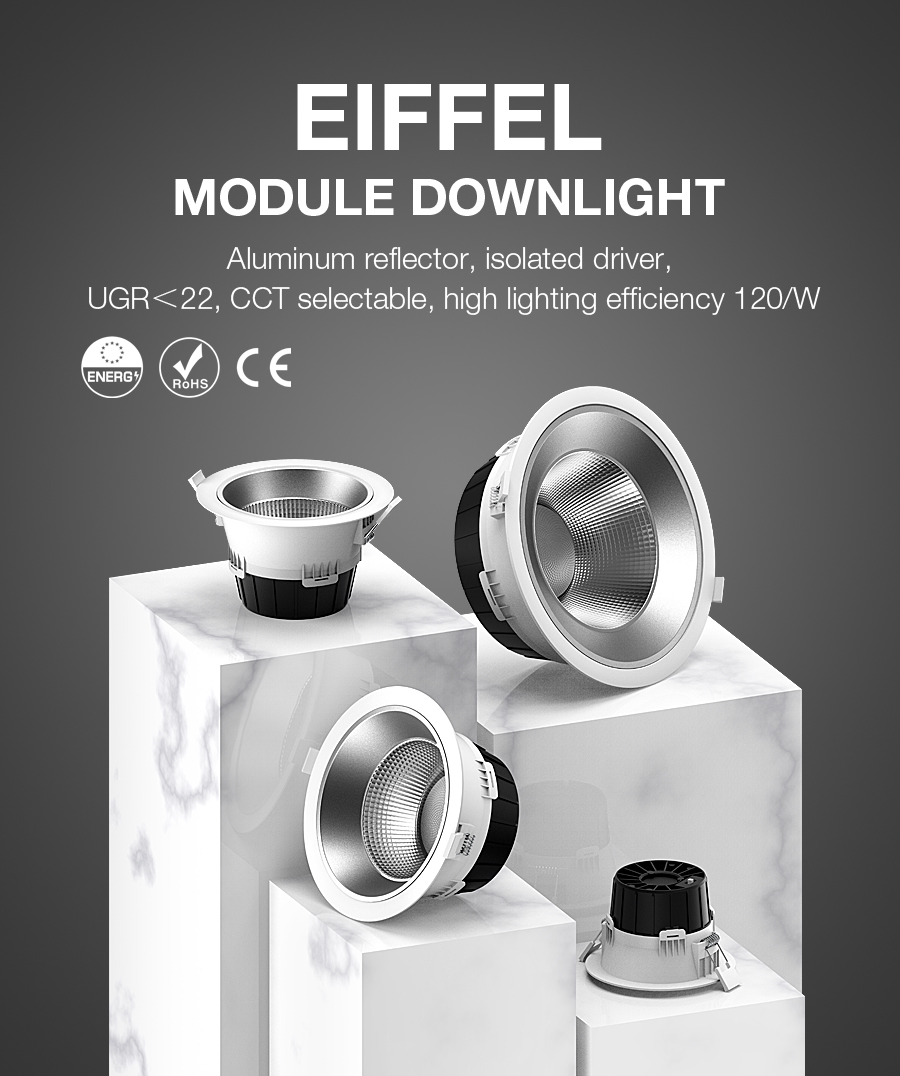

Deep recessed ceiling downlight EIFFEL with CCT2 and UGR22

ADAYO lighting deep recessed ceiling downlight with aluminum reflector has a high lighting effiency 120lm/w and this led down lights for ceiling has 50000hrs lifespan, 5 years warranty

Product Specification:
  • Code : 926602007040
  • Rated Wattage : 15W
  • Luminous : 1900lm
  • Colour Temperature : CCT2 3000-4000K
  • Dimming or not : Non-Dimmable
  • beam angle : 80°
  • Lifespan : 50000hrs
  • Size : Φ176*86mm cutΦ150mm
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs
Product Details
Documents download


●  Over view

ADAYO Lighting is a LED downlight manufacturer that supports customizing all kinds of downlights and other commercial lighting.

This 15W deep recessed ceiling downlight with aluminum reflector UGR are less than 22, this led down lights for ceiling has a high color rendering index (CRI>80) to retain true colors and available in different sizes and wattages. And this downlights in ceiling also has 50000hrs lifespan and 5 years warranty.



●  Product  Description

ADAYO's deep recessed ceiling downlight in this module is suitable for use in commercial, retail, hospitality and residential applications. Our LED downlights offer high lumen output, smooth illumination and high energy efficiency. And this module downlight specifications are as follow:


 Item Name:  EIFFEL deep recessed ceiling downlight       Code:     926602007040
 Watt (W):  15  Lumen(lm):             1900
 Input Voltage(V):       220-240v ~50/60Hz  CRI (Ra>):  80
 Lifespan:  50000hrs  IP Rating:  IP54
 Warranty:  5 years  Beam angle:   80°
 Installation:  Recessed  CCT:  CCT2 3000-4000K
 Lamp Body Materia:         AL+PA  Light source:                SMD2835



●  Features

     DALI version and emergency version are available

     Aluminum reflector, UGR<22 and high luminous efficiency more than 120lm/w

     Easy Installation, 3 pins loop in and loop out

     IP54 for room side

     Color temperature can be adjusted by dial

     No Flicking, no black spots, soft edges

     50000hrs lifespan, 5 years warranty



●  Options

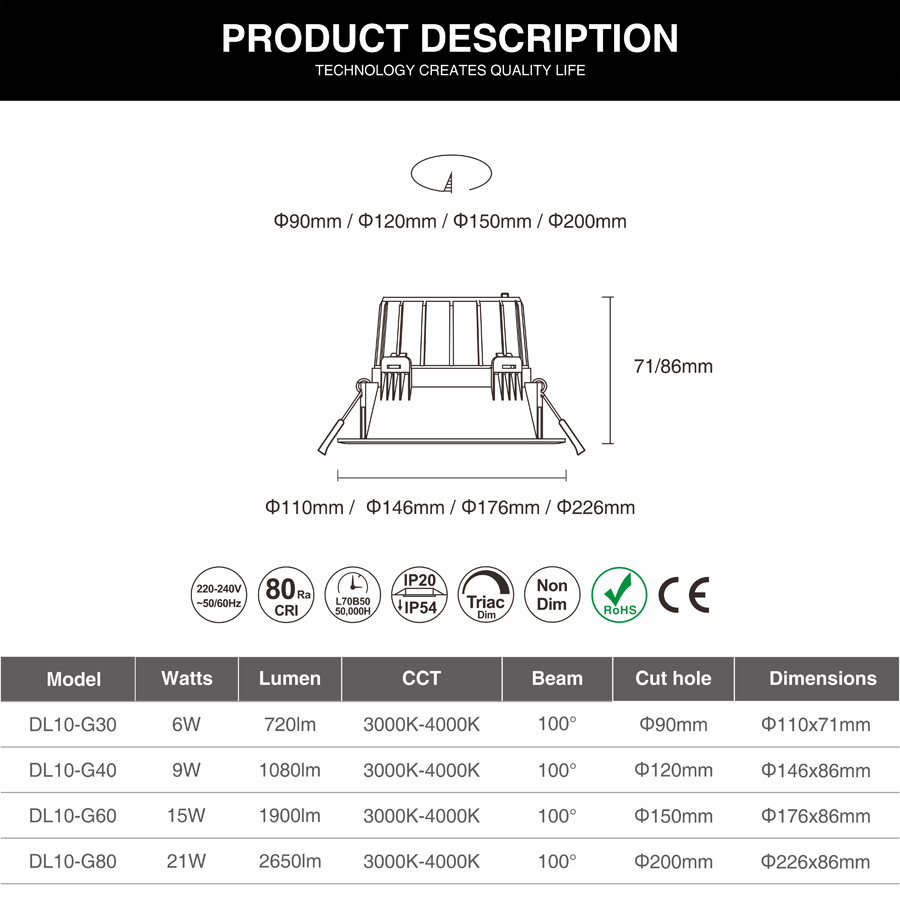

1. Wattage: 6W, cutΦ90mm/ 9W, cutΦ120mm/ 15W, cutΦ150mm/ 24W, cutΦ200mm.

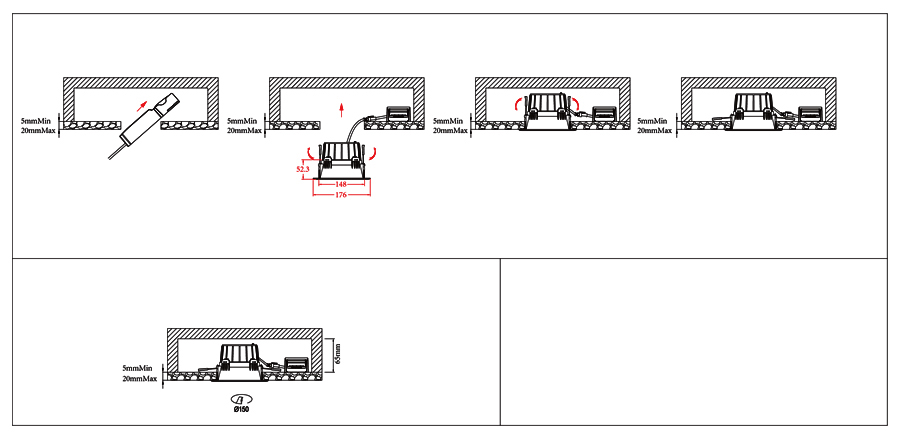

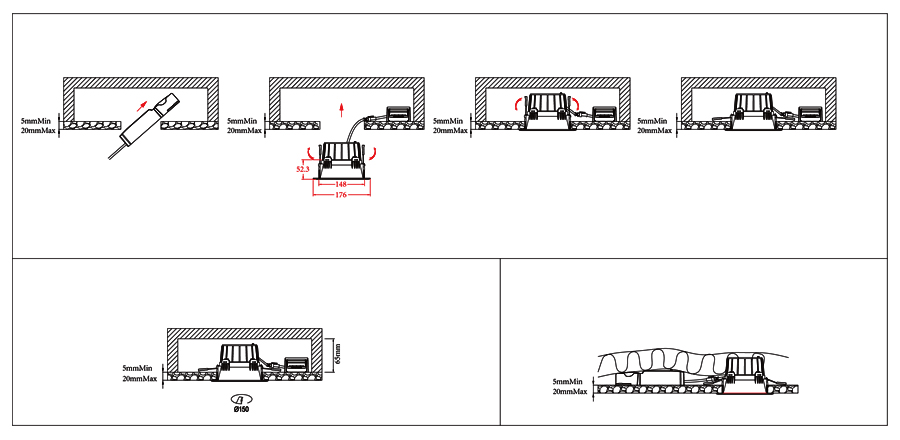

● Installation

To avoid electric shock, maintenance and installation are recommended to be performed by a professional electrician.
Please use within the correct input power range.
Please turn off the power before installation to ensure safety.


ADAYO waterproof led downlights

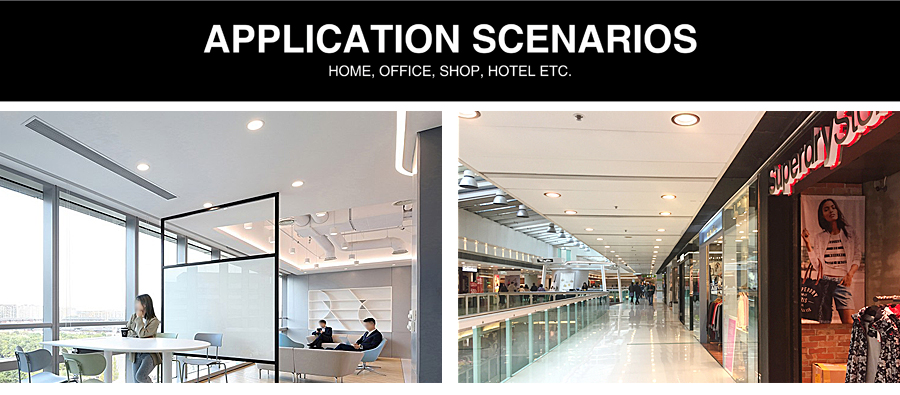

● Application Scenarios

The high lumen, high efficiency make this deep recessed ceiling downlight ideal for project lighting.

Also available in multiple versions, sizes and wattages to meet different lighting needs for different projects or for the same project, like mall, hall, meeting room, hotel etc.



● Brief introduction of ADAYO Lighting:

ADAYO was founded in 1993, listed in 2017, the main modes of cooperation are OEM, ODM and SKD. Industrial park area: 560000sqm.

There are three main business line of ADAYO lighting: LED lighting, LED package and LED big power supply;

With R&D laboratory covered 1200m² with international standard;

R&D team more than 60 people, one third of them with more than 20 years of experience in the lighting industry;

Work Shop 5000 SQM with more than 300 works and 50 production lines;



 Add: Foryou Industrial Park Area B -- Plant NO.6 No.1North Shangxia Road, Dongjiang High-tech Industry Park, Huizhou City, Guangdong Province

Phone & WhatsApp: 0086 13827734167

Tel: 0086-752-5300601

Fax: 0086-752-5300099

E-mail: [email protected]

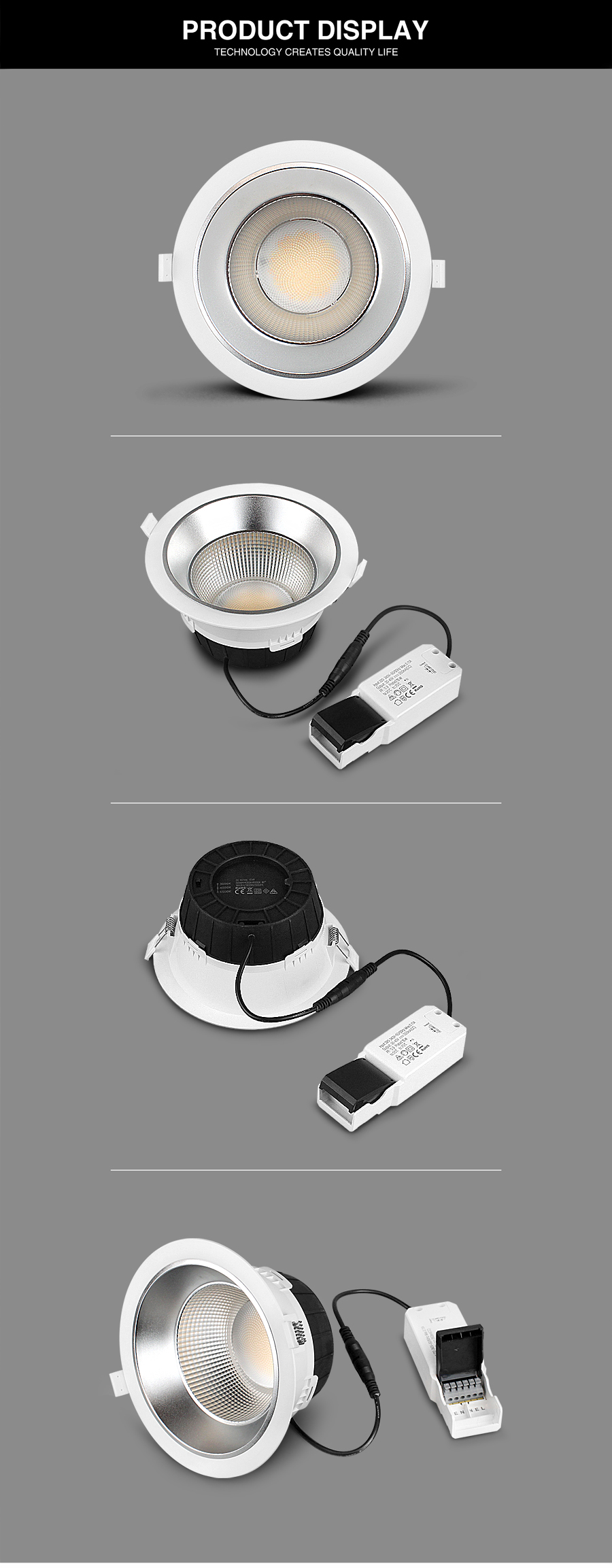

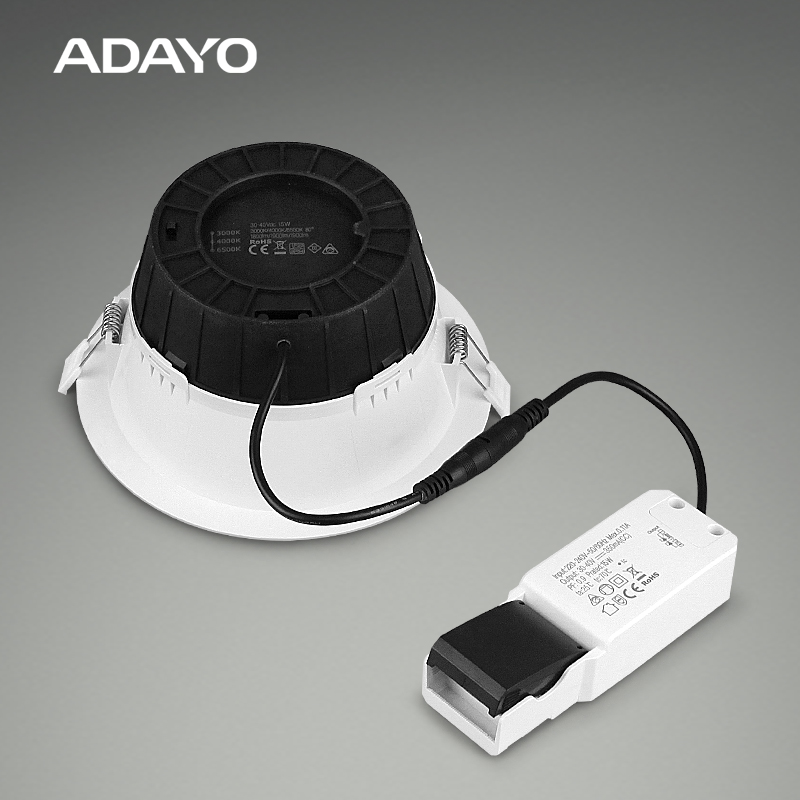

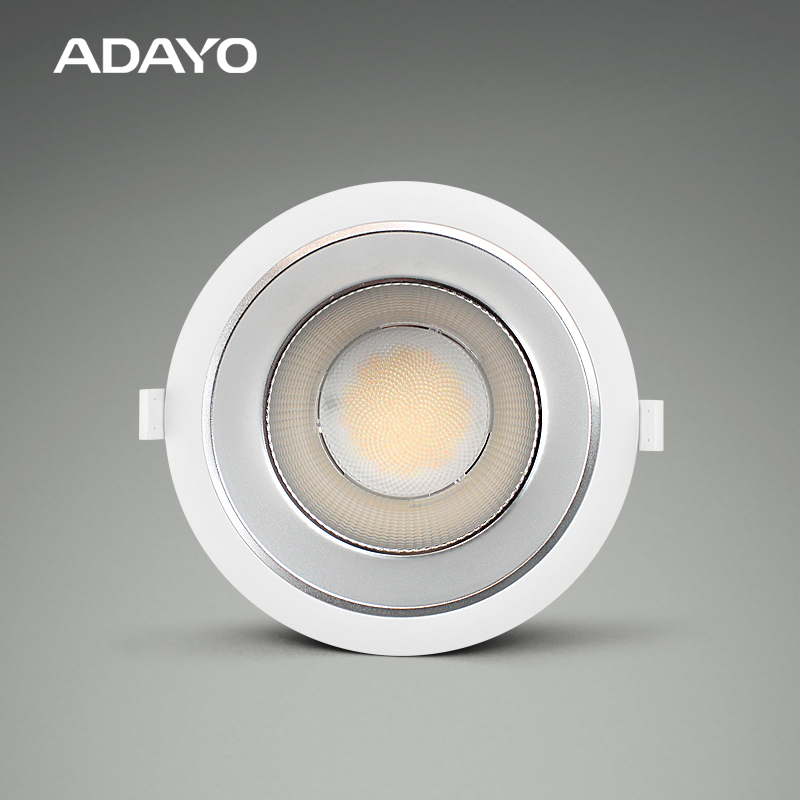

ADAYO deep recessed downlight

ADAYO deep recessed downlight

ADAYO deep recessed downlight

ADAYO deep recessed downlight
