ADAYO lighting mini led spotlights with die-casting aluminum body have good heat dissipation, this small ceiling spotlights comply with new ERP

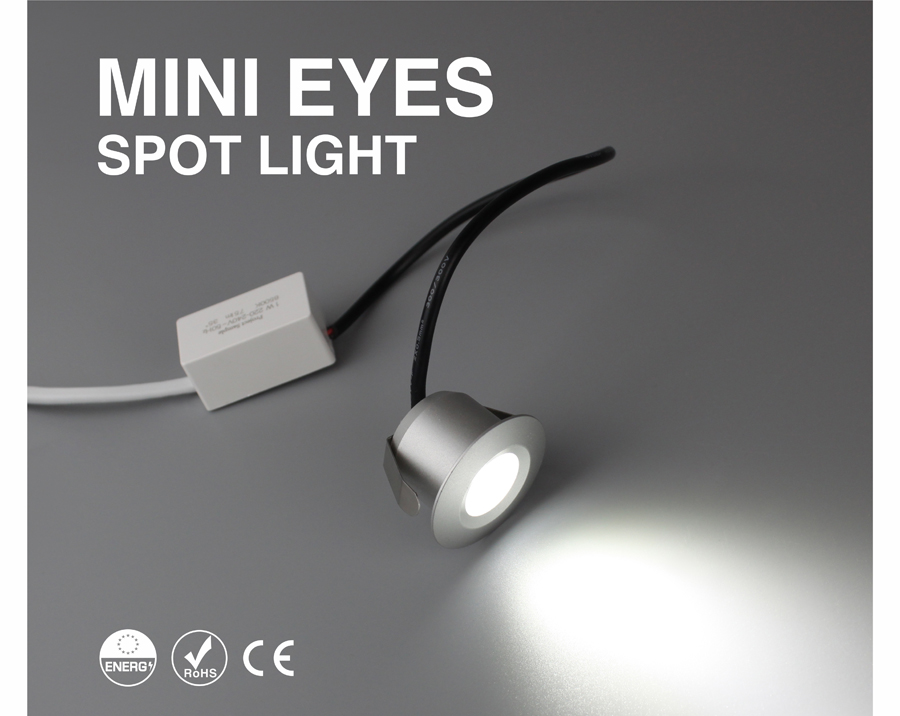

MINI EYES 1W mall ceiling spotlights 3000K non-dimming

ADAYO lighting 1W mini led spotlights with all aluminum design and good quality beam angle 36°, small ceiling spotlights with 25mm size are suitable for a more narrow space

Product Specification:
  • Code : 926602006652
  • Rated Wattage : 1W
  • Luminous : 90lm
  • Colour Temperature : 3000K
  • Colour Rendering : >80
  • Size : Φ37.5*25mm cut Φ28mm
  • PF : >0.4
  • Dimmable : No
INQUIRY NOW
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs
Product Details
Documents download



●  Product  Description

MINI EYES 1W small ceiling spotlights 3000K with classic minimalist desing and die-casting aluminum bodygood heat dissipation, small size suitable for narrow space.



ADAYO mini led spotlights

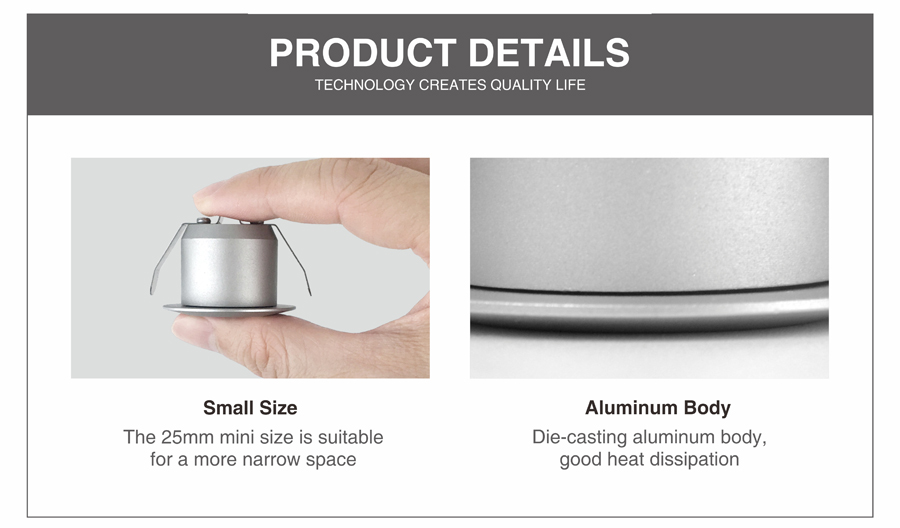

●  Features

ADAYO lighting 3000K mini led spotlights small ceiling spotlights features as below:

  • Aluminum heat sink
  • Die-casting aluminum body, good heat dissipation
  • CE, NEW ERP, EMC, ROHS approved
  • 25mm mini size
  • Heat protection system, with excellent internal driver
  • Life span 25000hours



ADAYO mini led spotlights

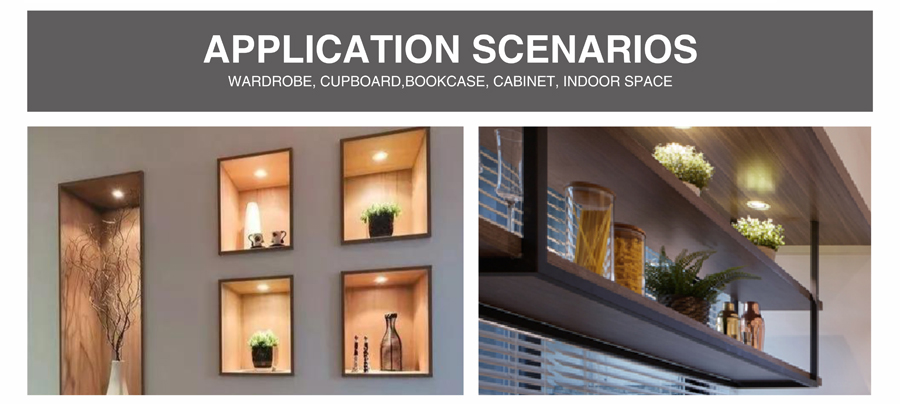

●  Applications

MINI EYES 1W mini led spotlights with 36degree angle soft light, as a indoor spotlight meet your different ceiling styles

  • Wardrobe; Cupboard; Cabinet
  • Bookcase; Shop.
  • Indoor space.



ADAYO mini led spotlights



●  Specification



SPECIFICATION
Item NO. SKU Lumen(lm) CRI CCT Watt (W) PF Beam angle (°) Size
(Dia * H mm)
Cut size (mm)
926602006652  CB15C-N0007-303-2 90 80 F3000 1 0.4 36 ø37.5 25 ø28
926602006645   CB15C-N0007-603-2 100 80 F6500 1 0.4 36 ø37.5 25 ø28



ADAYO mini led spotlights



●  Options

  • 3000K/6500K

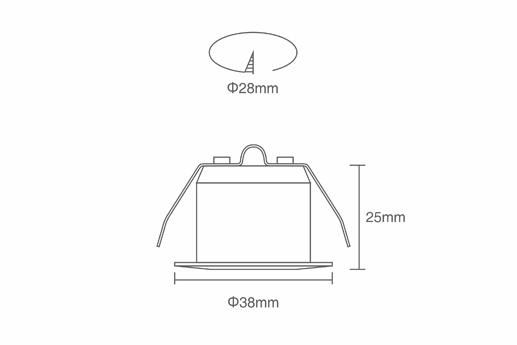

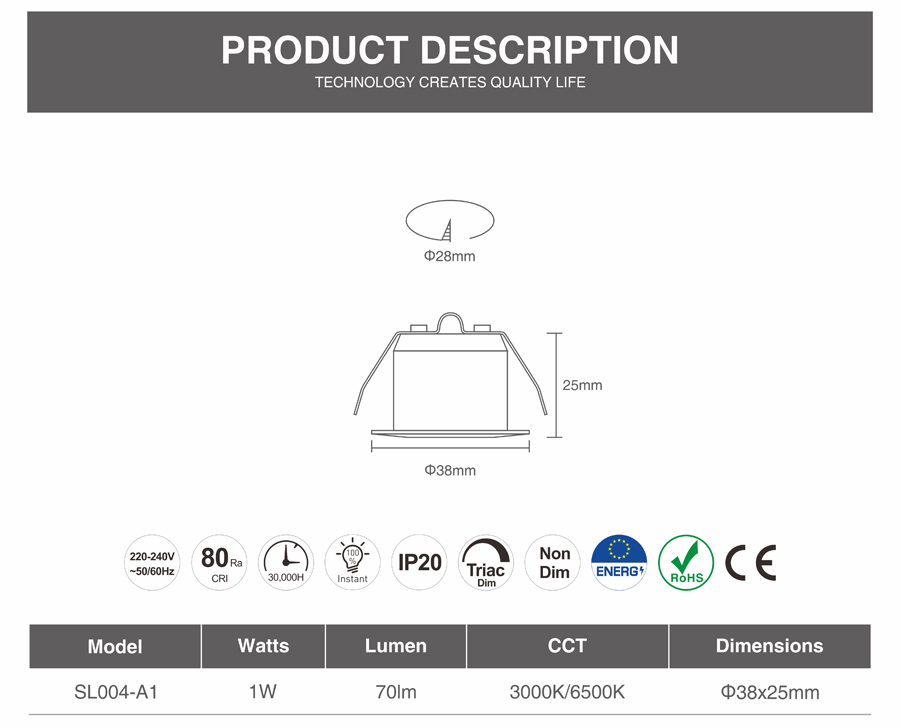

●  Product Line Drawing (Size:mm)



ADAYO mini led spotlights



● Accessories

  • External driver



ADAYO mini led spotlights



●  Installation

  • Make sure power is off before installation.
  • Cut a suitable hole in the ceiling , the hole size will show on the specification form.
  • Connect wires to the wire box .(image A)
  • Press the side spring and push the fixture fitting into the ceiling hole, and make sure the fitting is stable and firmly.(image b) (Need to be adjusted well to illuminate angle). After proper installation is confirmed, switch on the main power.





●  Brief introduction of ADAYO Lighting

  • A wholly owned subsidiary of Foryou corporation (ADAYO, Since 1993, listed in 2017)
  • Industrial park: 56000sqm
  • Business line: LED package, LED high power driver, LED Lighting
  • R&D laboratory: 1200sqm with international standard
  • R&D team: more than 60 people, one third of them with more than 20 years of experience in the lighting industry
  • Work shop: 5000 SQM  with more than 300 works and 50 production lines
  • Monthly Capacity(Pieces) :  package 1000KK , Driver: Big Watt: 300K, Low Watt: 1000K,  LED light: 5000K
  • New product lunch time: 6-10 weeks.
  • Payment: L/C, T/T, O/A
