ADAYO lighting gu10 spot lights are design for sealed space using and this warm led spotlights has thickened and bigger aluminum heat sink

50000hrs GU10 spot lights 5W CCT2 design for sealed place

ADAYO lighting gu10 spot lights with 50000hrs lifespan can work with fixtures in harsh applications and our warm led spotlights with CCT2 also available in single color temperture

Product Specification:
  • Code : 926602006848
  • Rated Wattage : 5W
  • Luminous : 490lm
  • Colour Temperature : CCT2 3000K-4000K
  • Colour Rendering : >80
  • Size : Φ50*54mm
  • PF : >0.7
  • Dimmable : Yes
INQUIRY NOW
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs
Product Details
Documents download

●  Product  Description

ADAYO 50000hrs lifespan GU10 spot lights 5W CCT2 with non-dimmable and dimmable options is available that can be used in sealed place. With a classic minimalist design, tool-free installation and good heat dissipation performance, this warm led spotlights are suitable for different application.





●  Features

ADAYO lighting 5W GU10 spot lights with features are as below:

  • Suitable to be used in fire-rated downlight or GU10 downlight covered by insulation material
  • COB-likelens, providing uniform light
  • One-piece heatsink, better heat dissipation capability
  • Compatible with leading edge and trailling edge dimmers
  • CCT selectable
  • White, grey color optional
  • Ra90, up to 100lm/W
  • 50000hrs lifespan, 5years' warranty



ADAYO gu10 spot lights



●  Applications

GU10 spot lights 5W CCT2 warm led spotlights, with 38 degree angle bright feeling meet your different ceiling styles.

  • Living room, bedroom, bathroom, kitchen.
  • Office, meeting room.
  • Shop, hall, supermarket.
  • Used inside sealed fixtures or fixtures under insulation material.



ADAYO gu10 spot lights



●  Specification



SPECIFICATION
Item NO. Dimmable Lumen
 (lm)
CIR CCT Watt (W) PF Beam angle
 (°)
Size
(Dia * H mm)
Waterproof
926602006843  Yes 470 80 F3000 5 0.7 38 ø50 54 IP20
926602006846 Yes 470 80 F3000 5 0.7 38 ø50 54 IP44
926602006848  Yes

450
490

80 3000
4000
5 0.7 38 ø50 54 IP20
926602006993

Non

440
480

80 F3000
F4000
4.8 0.5 38 ø50 54 IP20
926602006989 Non 520 80 F4000 4.8 0.5 38 ø50 54 IP20
926602006992 Non 520 80 F4000 4.8 0.5 38 ø50 54 IP44



●  Options

  • Dimmable/non-dimmable for option
  • 2700K/3000K/4000K/, CCT2 optional
  • IP20/IP44 optional

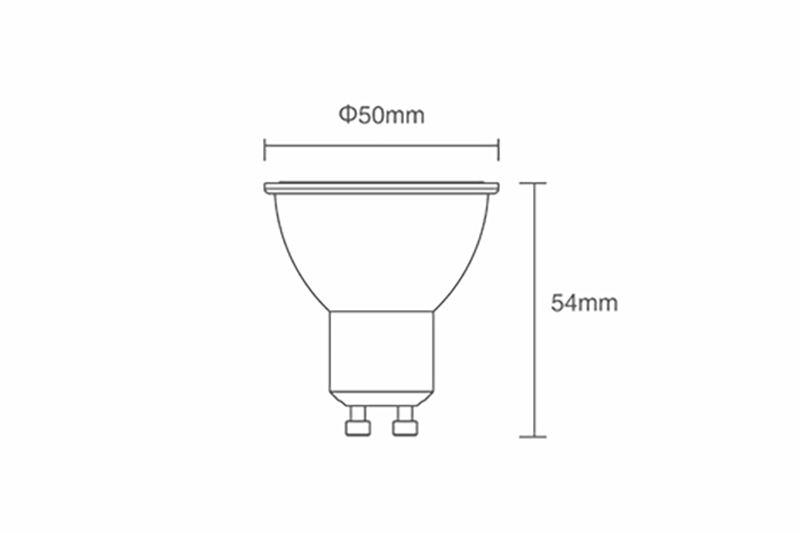

●  Product Line Drawing (Size:mm)

ADAYO gu10 spot lights

●  Installation

  • Make sure power is off before installation.

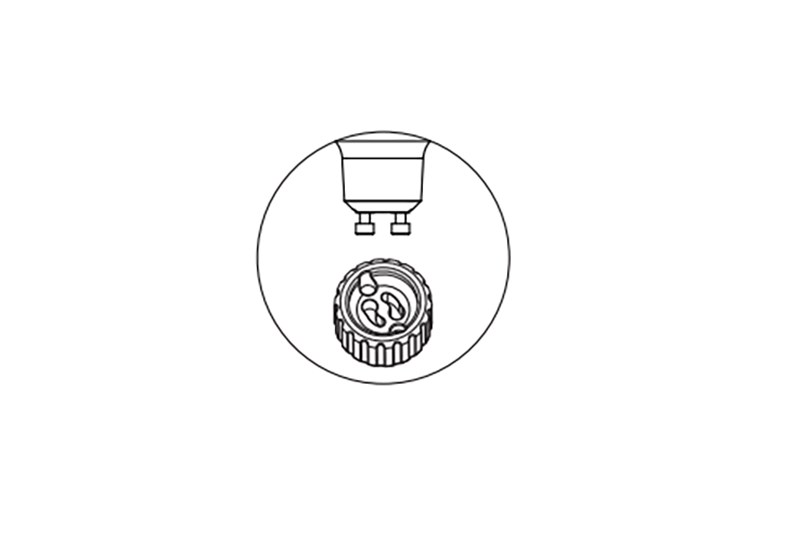

  • The installation of the lamp into GU10 Lamp holder shows as below:

ADAYO gu10 spot lights

● Accessories Optional

  • Frames optional
  • Fixture ring optional
  • Juction box optional



ADAYO gu10 spot lights



●  Brief introduction of ADAYO Lighting

  • A wholly owned subsidiary of Foryou corporation (ADAYO, Since 1993, listed in 2017)
  • Industrial park: 56000sqm
  • Business line: LED package, LED high power driver, LED Lighting
  • R&D laboratory: 1200sqm with international standard
  • R&D team: more than 60 people, one third of them with more than 20 years of experience in the lighting industry
  • Work shop: 5000 SQM  with more than 300 works and 50 production lines
  • Monthly Capacity(Pieces) :  package 1000KK , Driver: Big Watt: 300K, Low Watt: 1000K,  LED light: 5000K
  • New product lunch time: 6-10 weeks.
  • Payment: L/C, T/T, O/A
