ADAYO Lighting small spotlights for ceiling 68mm cut, 24mm height and 4.8w 390lm ip44 adjustable downlights,soft lights spot light for bedroom

Amber-B ECO DIY downlight IP44 No-dim downlight 3000k for wholesale

ECO Downlight Amber B spot light for home with manufacture price and free sample. hot sales on line and supermarket. mini downlights 240v with slim body and bright light

Product Specification:
  • Code:926602006056 :
  • Wattage : 4.8W beam angle 38°
  • Luminous : 390lm
  • Colour Temperature : 3000K
  • Colour Rendering : >80
  • Lifespan : 15000hrs
  • Size:Φ87*35mm, cut Φ68mm :
  • Dimable: NA :
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs
Product Details
Documents download



About this item:

【IP65 waterproof】

The white appearance of the downlight 5w ceiling spot lights 3000k ip44 led downlight led slim is soft and elegant. With IP44 protection rating, the ip44 led downlight led slimis perfect for bedroom, living room, or any room in the house, providing you a bright and comfortable environment.

【Quality lighting】

The small spotlights for ceiling for low ceilings, with its luminous flux of 390 lm, replaces the 50W halogen bulb. The colour temperature: 3000K. Glare free. The product has an excellent colour rendering CRI > 80, which allows to obtain colours true to reality. Beam angle of 38 °.  This adjustable downlights PF>0.5,  it is really adjustable downlights for low ceilings for living room with good value.

【Integrated design 】

Integrated design:The spot light for home cannot be replaced. The mini downlights 240v is made of PV and aluminum. The acrylic diffuser has better light transmission than other materials. Simple spring fixing for tool-free installation.

【24mm LED spotlight extra flat】

The height of the mini downlights 240v is 24mm which allows it to be recessed in ceilings even where space is limited. The outer diameter is 87mm, the recessed hole should be between 68 and 80mm. The fixing system consists of springs that hold the integrated LED in place in its hole.

【High Quality & Safe】

Lifetime: The ceiling spot lights lifetime up to 15000h. Smooth surface, dustproof, waterproof, rustproof, an ideal choice for modern life!

【Easy To Install】

The integrated design of led downlight led slim can be directly connected to a voltage of 220V~240V without a transformer, and the installation with side springs effectively prevents leakage between the lamp and the ceiling. Only one mounting hole with a diameter of 68 to 70 mm and a cavity depth of 24 mm is required.

【After-Sales Service】

ADAYO Lighting  promise to provide you with 2 years warranty and lifetime after-sales service of  this ceiling spot lights. If you have any problems or questions during use, please feel free to contact us, we will try our best to solve them within 24 hours.

adjustable downlights

adjustable downlights

adjustable downlights



ADAYO lighting downlight 5w  Amber B  features as below:

1. With aluminum heat sink, keep life span 15000hours;

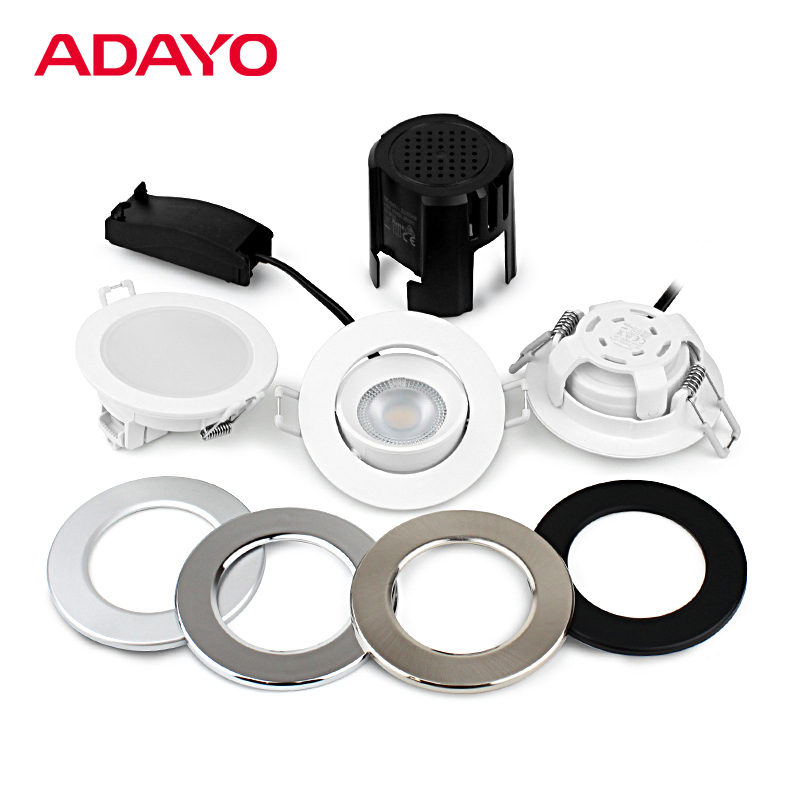

2. Four colors of bezels optinoal: brushed nickel, chrome, silver, black;

3. Size: 87x24mm, cut68mm. It's ultra-slim design for narrow space;

4. Clear light beam angle 38° with no dark spots and has gentle fade to edges for uniform lighting design;

5. Quality SMD 2835, 2700K/3000K/4000K;

6. Simple design, comfortable light feeling and easy installation.







ADAYO lighting small spotlights for ceiling , mini downlights 240v with slim body and bright light beam angle 38°, with diffirent colors bezel changable specification as below:

DIY led spot lights specification

Item Name: DIY ECO downlight AmberB                               Input Voltage(V):                 220-240v ~50/60Hz Max.0.055A
Watt (W): 4.8W Lumen(lm): 390LM
CODE:         926602006056 CRI (Ra>): >80
Certification:                        CE, Rohs             IP Rating: IP44/IP20
Life span: 15000Hrs Beam angle: 38°
Warranty: 2Years CCT: 3000K
Installation: Recessed  spotlight Bezel: Brushed nickel; Chrome; Silver; Black
Driver: PF>0.5 Light source:  SMD2835




Product detail:

ADAYO lighting downlight 5w,  ceiling spot lights led downlight led slim with diffirent color bezels choosing detail as below:

1. Driver: Built-in power supply

                Input:220-240v~50/60Hz  Max.0.055A

                PF: >0.5, Prated: 4.8W;

2. Body: Iron and die-cast aluminum heat sink, good heat dissipation, life span 15000Hrs, warranty 2 years, can be installed directly in to the insulation;

3. Light source: SMD2835, 3000K

4. Ultra-slim design for narrow space

5. Bezel: Four colors of bezels optinoal: brushed nickel, chrome, silver, black.




ADAYO lighting  small spotlights for ceiling,  68mm cut, 24mm height and 4.8w 390lm ip44 adjustable downlights,soft lights spot light for bedroom application as below:

This  small spotlights for ceiling save more than 90% of power consumption without losing any brightness.

LED becomes the most popular light source all over the world. This adjustable downlights made of high quality metal materials, safe and long lifespan.

Perfect for living room, hall, office, store, super market, hotel residence, restaurant, hotel, hall, show room, shop window, assembly room, factory, etc.
