Over view:

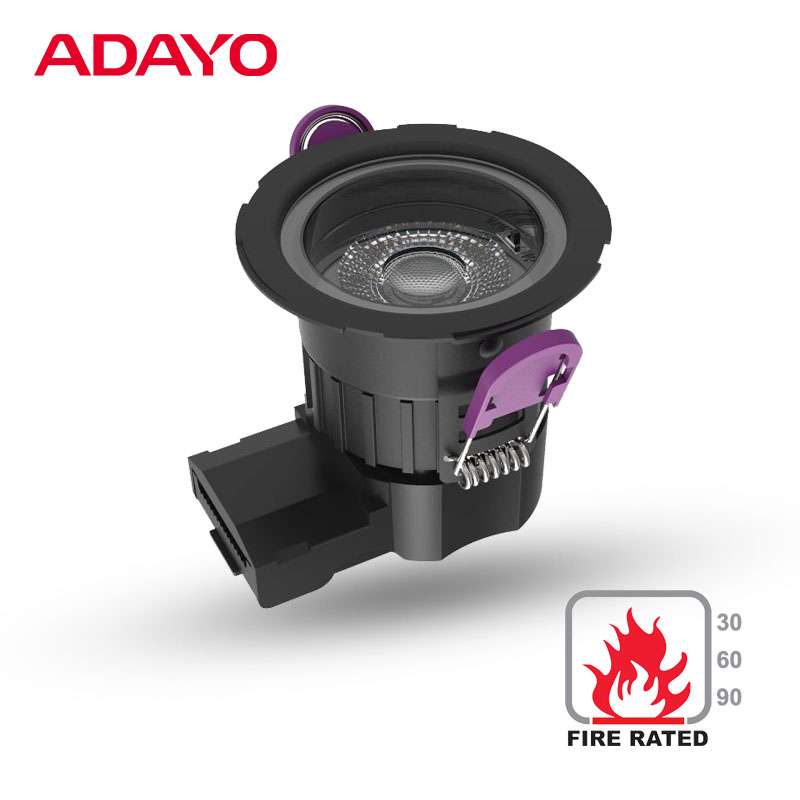

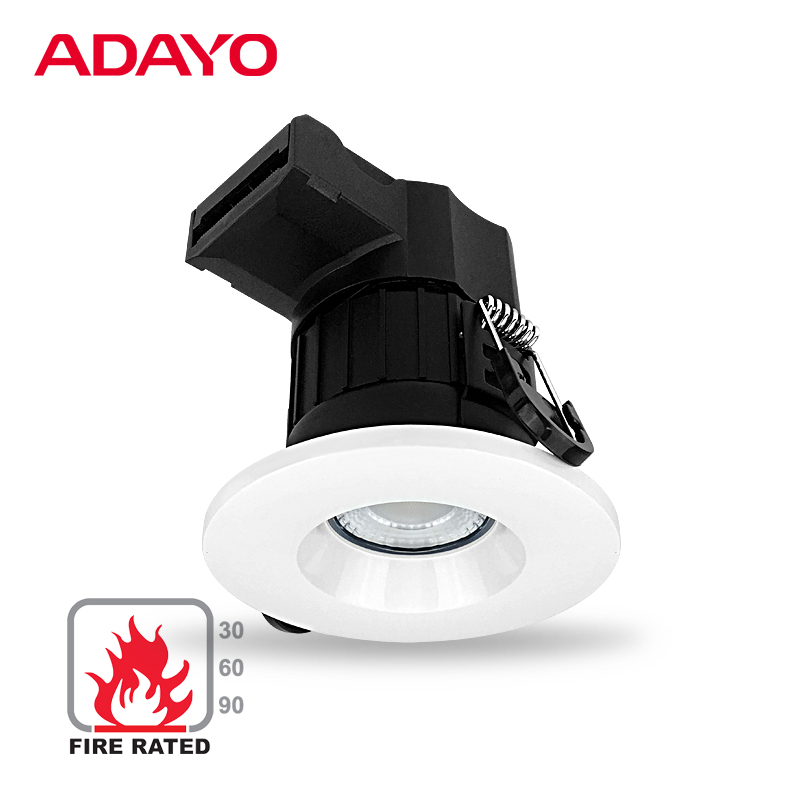

ADAYO lighting IP65 fire rated downlights wholesale, A02, ceiling lights UK custom for UK market with CE and BS476-21/22, 8.5w 680lm, CCT3, dimming, beam angle 60°, with diffirent color bezels choosing;

We are fire rated downlight custom, spotlight ceiling light wholesale, this led firesafe downlight with, no flic, triac dimming 220-240v, PF>0.9, RA>80, with new ERP standard;

This fire rated downlight custom with recessed installation there are four color of the bezels, black, white, silver and brushed nickel. Most of customers like brushed nickel color bezels for change, and the bezels with two material options;

This LED fire rated downlight custom G3A02 based on the G2 add more function just like CCT3, dimmable, bezel changeable, tooling free 3pin loop in and loop out, very easy installation;

This fire rated downlight custom is deep led source design and anti-glare, with 25000hrs life span.

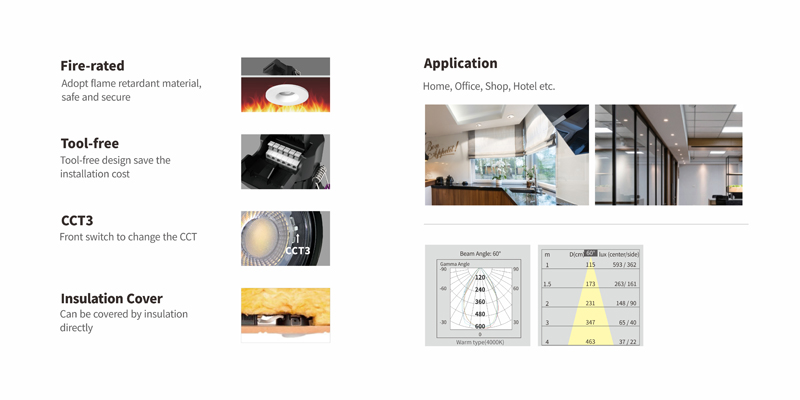

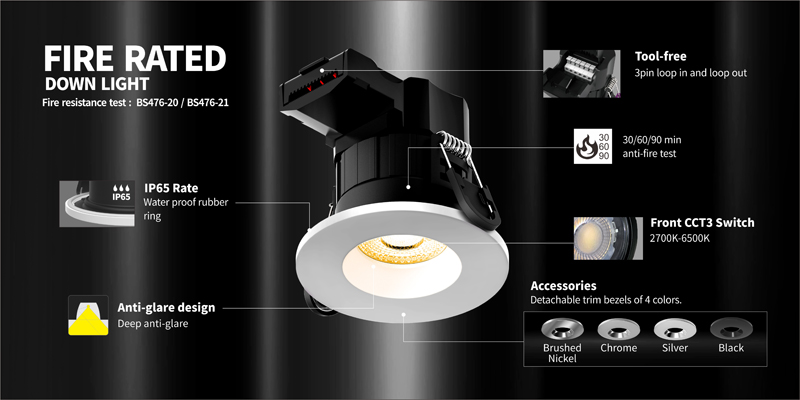

Features：

ADAYO lighting IP65 fire rated downlights wholesale, A02, ceiling lights UK custom for UK market with CE and BS476-21/22, 8.5w 680lm, CCT3, dimming, beam angle 60°, with diffirent color bezels choosing features as below:

1. The fire rated part made of iron which meiting point is 1538 ℃, with fire rated 30'60'90 certificater: BS476-21/22;

2. With aluminum heat sink, keep life span 25000hours;

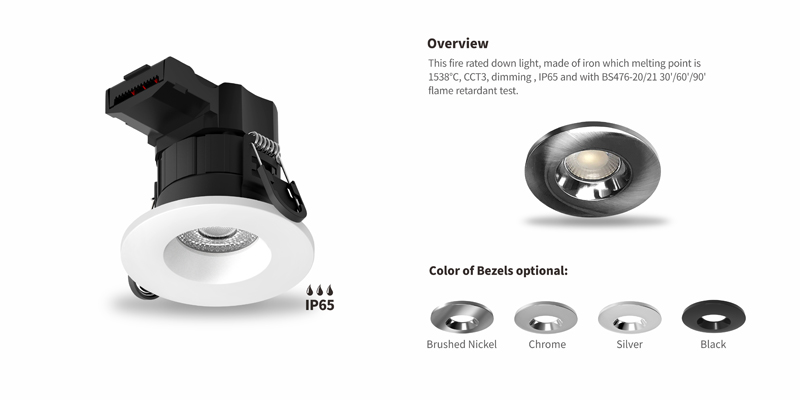

3. Four colors of bezels optinoal: white, brushed nickel, black and chrome;

4. IP65 Waterproof, can be covered by insulation directly;

5. Clear light beam angle 60° with no dark spots and has gentle fade to edges for uniform lighting design;

6. Quality SMD 2835, CCT3 or 3000K/4000K/65000K optional;

7. Triac dimming smoothly;

8. Front switch of CCT3 changeable, you can change the light color very easy;

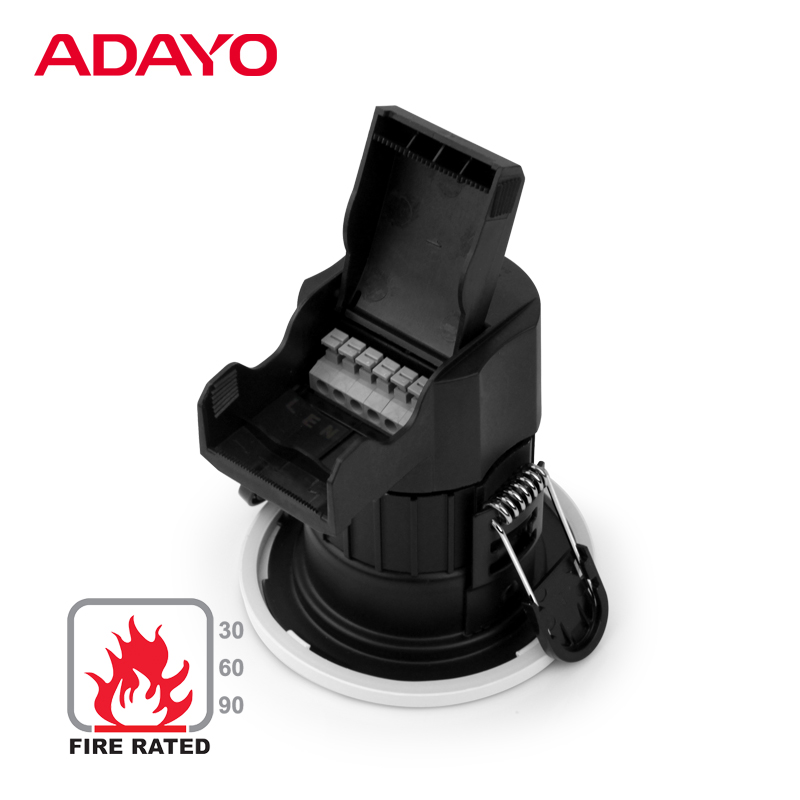

9. Tooling free design, 3pin loop in and loop out.





Product detail：

ADAYO lighting IP65 fire rated downlights wholesale, A02, ceiling lights UK custom for UK market with CE and BS476-21/22, 8.5w 680lm, CCT3, dimming, beam angle 60°, with diffirent color bezels choosing choosing detail as below：

1. Driver: Built-in power supply

                Input:220-240v ~50Hz Max.0.05A;

               Output: 72V±10%  100mA (CC), PF:>0.9, Prated: 8.5W;

2. Body: Iron and Die-cast aluminum heat sink, good heat dissipation, life span 25000Hrs, warranty 3 years, can be installed directly in to the insulation;

3. Light source: SMD2835, CCT3;

4. Tooling free desing: 3pin loop in and loop out;

5. Waterproof: IP65, with two silicone pad in the bezel and the lens;

6. Bezel: Four colors of bezels optinoal: white, brushed nickel, black and chrome, made of ADC12 die-catsting aluminum or ABS.

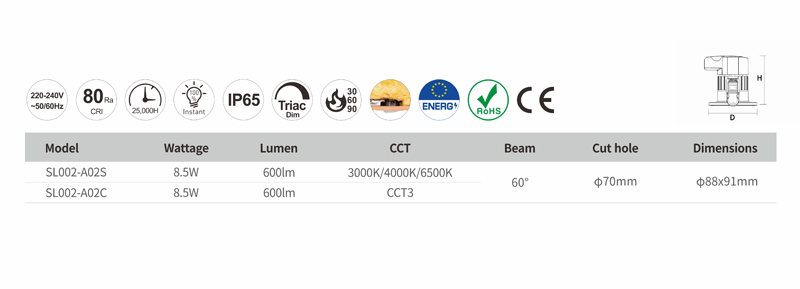

Specification：

ADAYO lighting IP65 fire rated downlights wholesale, A02, ceiling lights UK custom with CE and BS476-21/22, 8.5w 680lm, CCT3, dimming, beam angle 60°, with diffirent color bezels choosing specification as below:

IP65 fire rated downlights wholesale specification



Item Name:	IP65 fire rated downlights G3 A02	Input Voltage(V):	220-240v ~50Hz Max.0.05A
Watt (W):	8.5	Lumen(lm):	600
Lamp Body Materia:	Aluminum Alloy + Iron+ABS	CRI (Ra>):	>80
Certification:	CE, Rohs, BS476-21/22	IP Rating:	IP65
Life span:	25000Hrs	Beam angle:	60°
Warranty:	3Years	CCT:	CCT3  or 3000K/4000K/6500K
Installation:	Recessed fire rated downlight	Bezel:	White,  Black, Chome, brushed nickel
Driver:	PF>0.9	Light source:	SMD2835





Application:

ADAYO lighting IP65 fire rated downlights wholesale, A02, ceiling lights UK custom for UK market with CE and BS476-21/22, 8.5w 680lm, CCT3, dimming, beam angle 60°, with diffirent color bezels choosing application as below:

This LED downlight custom save more than 90% of power consumption without losing any brightness.

LED becomes the most popular light source all over the world. This ceiling light made of high quality metal materials, safe and long lifespan.

Perfect for living room, hall, office, store, super market, hotel residence, restaurant, hotel, hall, show room, shop window, assembly room, factory, etc.
