●  Product  Description

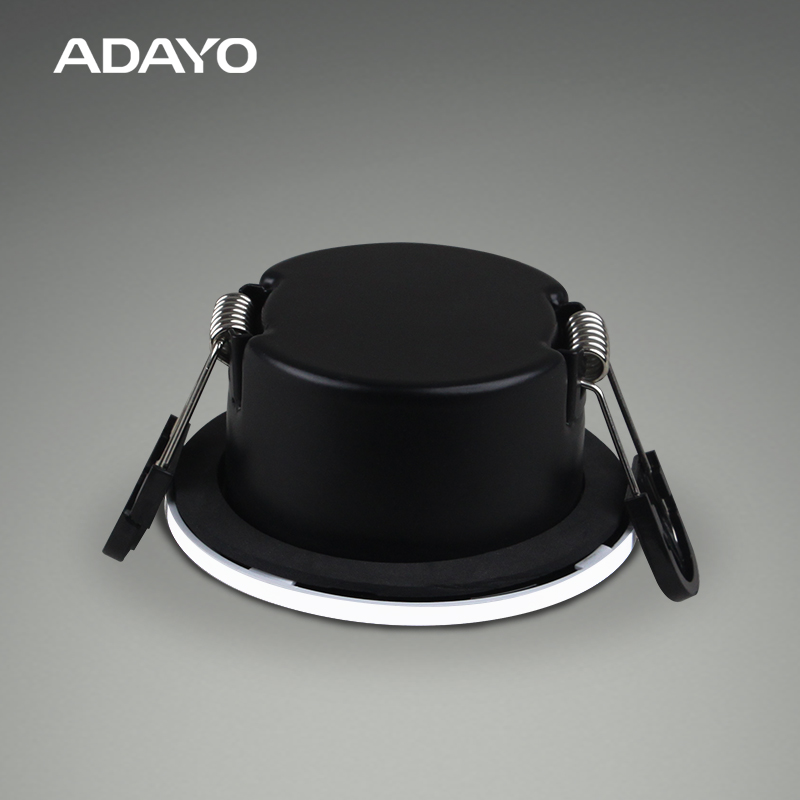

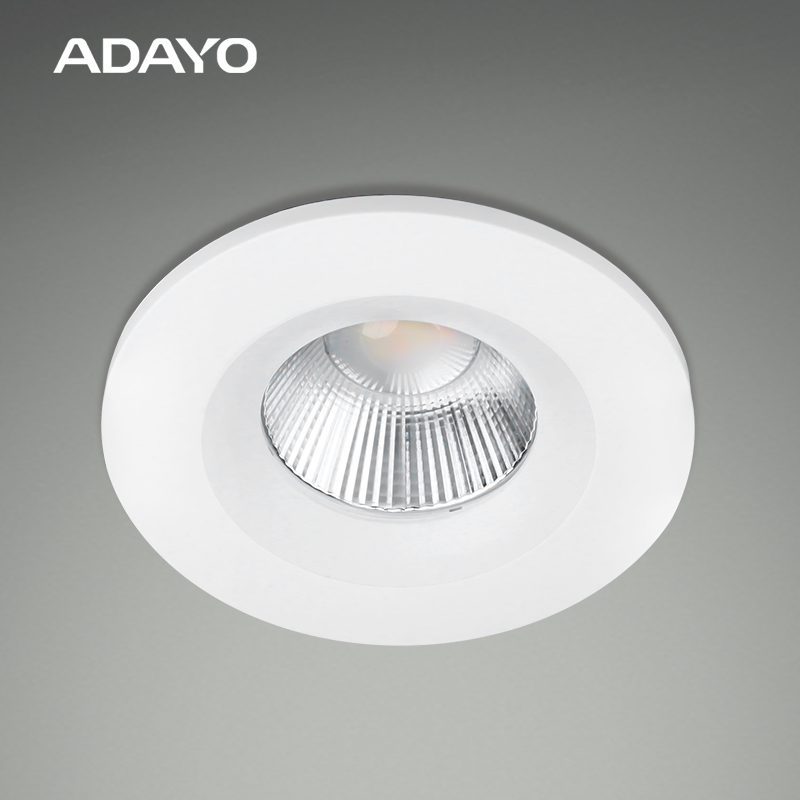

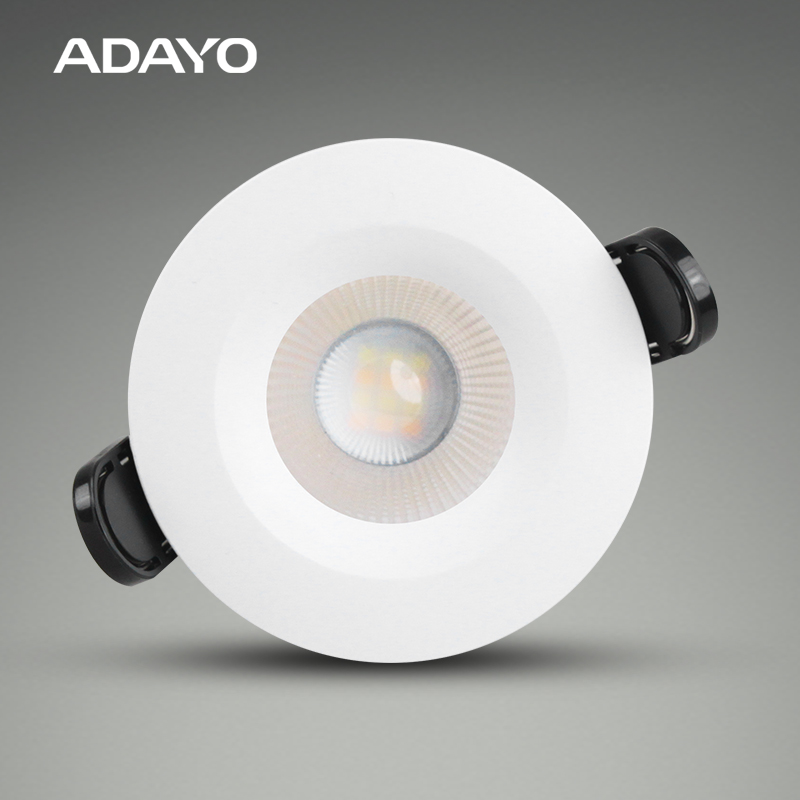

FRD-2 fire rated down light passes 30/60/90 min anti-fire test for solid joistand l-joist. This tiltable led downlights with classic minimalist design are suitable for different application. The low profile design of this fire rated dimmable led downlights, with a height of 40 mm, makes it suitable for limited ceiling space.

●  Features

ADAYO lighting module IP65 downlights fire rated down light features as below:

• Unique replaceable light module
• 30/60/90 min anti-fire test for solid joistand l-joist
• lP65 with lens design
• Twist & lock Bezels
• CCT switchable(2700K/3000K/4000K)
• lsolated driver, 40mm height
• Tool free 3 loop in 3 loop out for quick installation
• Can be covered byinsulation material
• 5 years warranty

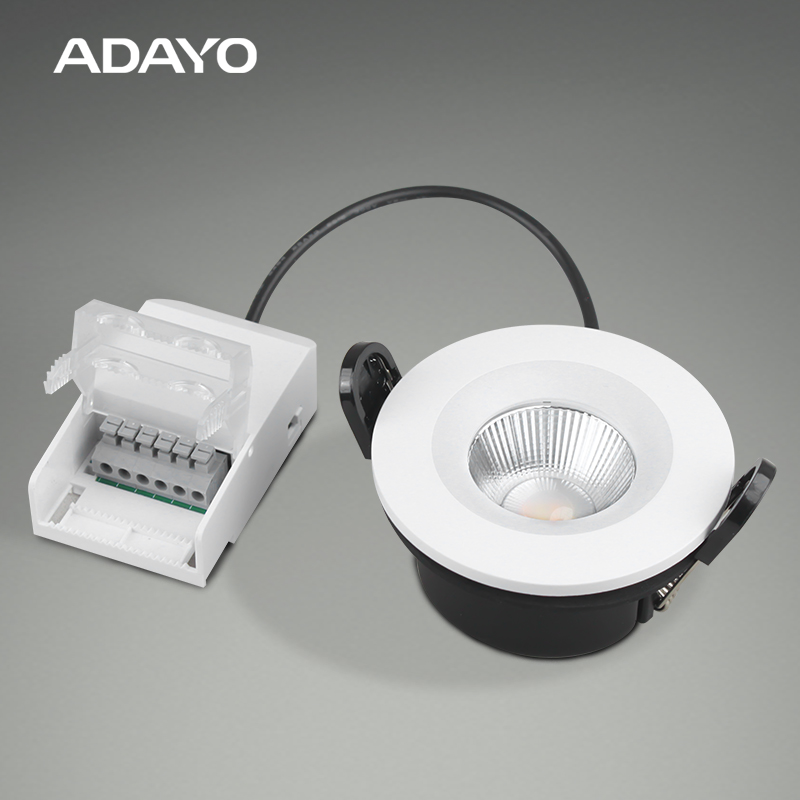

• Plug-in power supply/integrated power supply optional

●  Applications

FRD-2 module fire rated down light IP65 downlights are widely bright feeling, with isolated driver, 40mm height can meet your different ceiling styles.

• Living room, bedroom, bathroom, kitchen.
• Office, meeting room.
• Shop, supermarket.
• Hotel.

●  Specification

●  Options

• Plug-in power supply/integrated power supply
• Lens and reflector for option
• Interchangeable bezels, Twist & lock Bezels

●  Product Line Drawing (Size:mm)

●  Installation

• Make sure power is off before installation.
• Cut a suitable hole in the ceiling , the hole size will show on the specification form.
• Press the side spring and push the fixture fitting into the ceiling hole, And make sure the fitting is stable and firmly. After proper installation is confirmed, switch on the main power.

●  Brief introduction of ADAYO Lighting

• A wholly owned subsidiary of Foryou corporation (ADAYO, Since 1993, listed in 2017)
• Industrial park: 56000sqm
• Business line: LED package, LED high power driver, LED Lighting
• R&D laboratory: 1200sqm with international standard
• R&D team: more than 60 people, one third of them with more than 20 years of experience in the lighting industry
• Work shop: 5000 SQM  with more than 300 works and 50 production lines
• Monthly Capacity(Pieces) :  package 1000KK , Driver: Big Watt: 300K, Low Watt: 1000K,  LED light: 5000K
• New product lunch time: 6-10 weeks.
• Payment: L/C, T/T, O/A
