What is luminous flux, luminous efficacy, Illuminance and light failure?

Published by ADAYOLIGHTING 2024-03-28
Pinterest ADAYO light supply recessed downlight custom LED home lighting and commecial lighting OEM linkedin ADAYO lighting OEM indoor light ip65 home light track light and commecial lighting Facebook ADAYO lighting listed company OEM LED ceiling light and ODM  LED spot light  smart wifi lam Twitter ADAYO lighting offer wifi bulb OEM wifi fire rated downlight custom LED downlight and spot l ADAYO wifi bulb | smart wifi led bulb | wifi led light bulbs

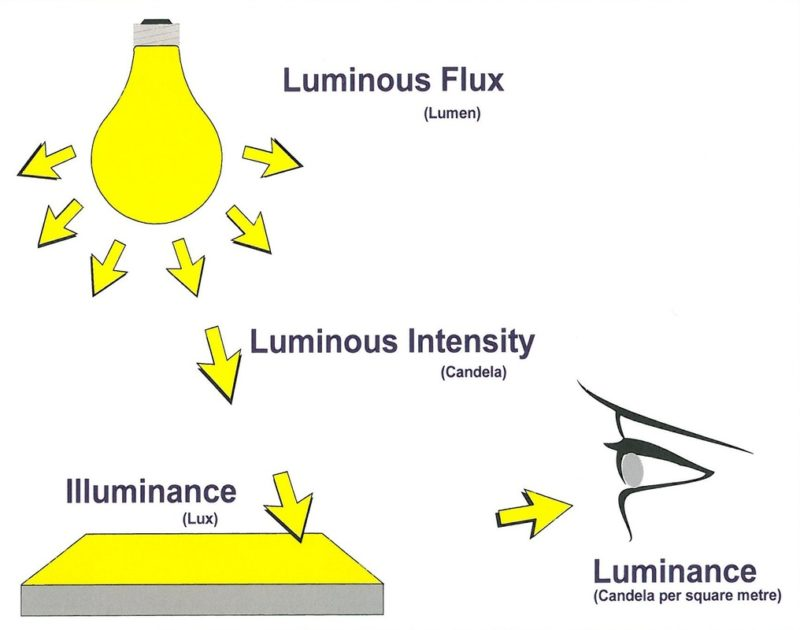

1. Luminous flux

Definition: The sum of the visible light emitted in all directions by a light source into the air per unit time.

Unit: Lumen (lm)

Explanation: How much energy is converted into light energy per unit time when the light source is lit.

Example: A 18W LED down light has a luminous flux of 1800lm.



ADAYO led down light

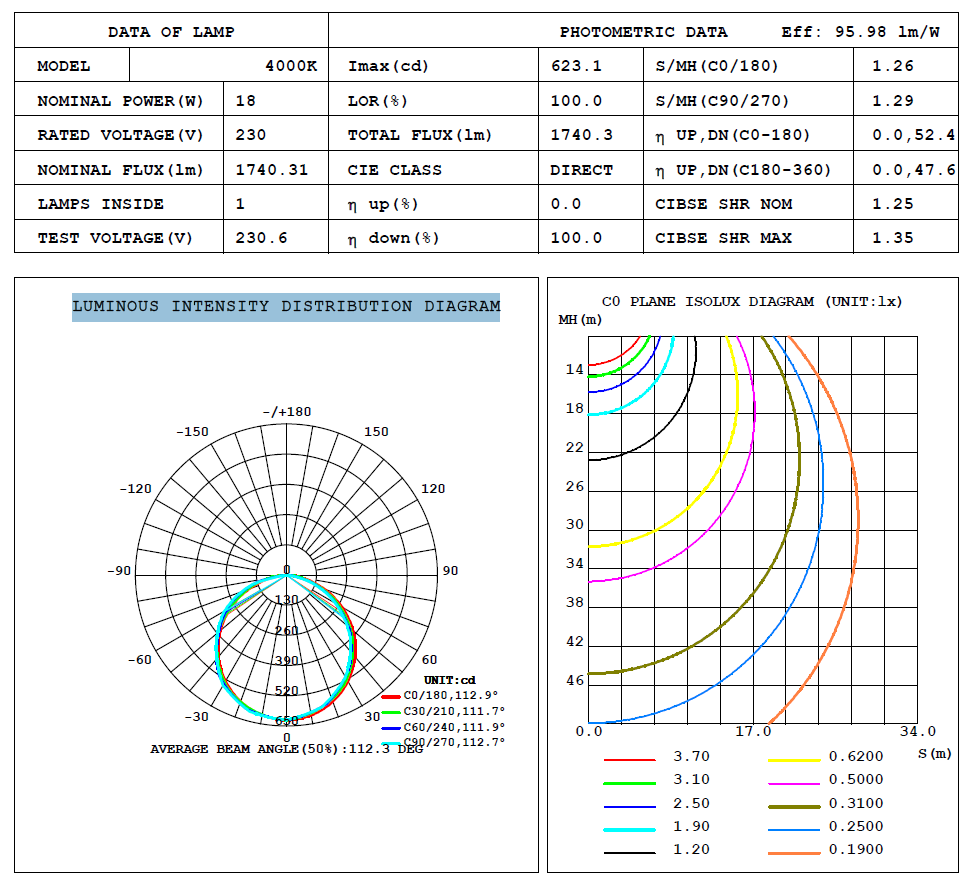

2. Luminous efficiency

Definition: The ratio of the total luminous flux (lumen, brightness) emitted by a light source to the electrical power (watts) consumed by that light source.

Unit: Lumen/watt (lm/w)

Explanation: The higher the luminous efficacy, the more efficient the conversion of electrical energy into light energy, and is an indicator of the lamp.

Example: A 18W led down light with a luminous efficacy of 100lm/w means that 100lm of light can be produced by consuming 1w of electrical energy.

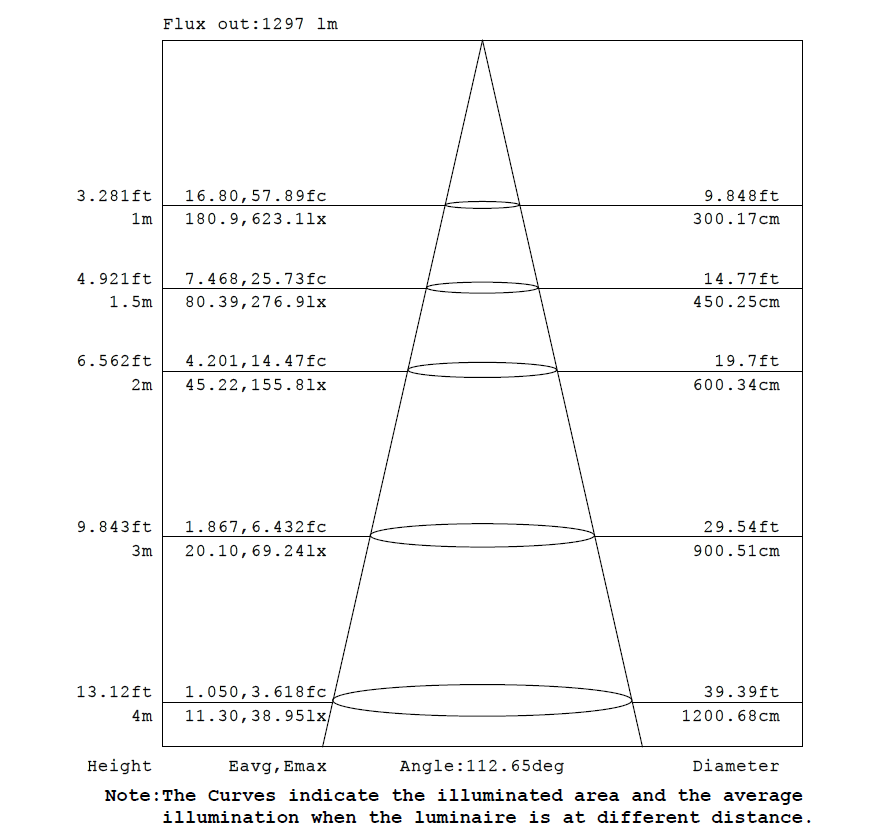

3. Illuminance

Definition: The degree to which an object is illuminated, expressed as the amount of luminous flux received per unit area.

Unit: Lux (lx), i.e. lm/m

Explanation: A quantity used to indicate the intensity of light and the extent to which an object's surface area is illuminated.

Example: An area of 1m2 receives 100lm of luminous flux, the illuminance of this area is 100Lux.



ADAYO led down light



4. Luminous Degradation

Definition: Luminous degradation means that the luminous flux of a lamp will be lower than the original luminous flux after a period of lighting, and this lower part is the luminous degradation of the LED.

Unit: Percentage (luminous flux decay / initial luminous flux)

Explanation: The percentage decrease in luminous flux of a lamp after a period of use.

Example: A down light with an initial luminous flux of 1800lm, after 10,000 hours of operation, the luminous flux becomes 1710lm.it is said that the down light has a light failure of 5% at 10,000 hours.



ADAYO led down light
